Midland Metal MFG 108065 Ductile Iron Flange 2 150 Threaded

Product Description

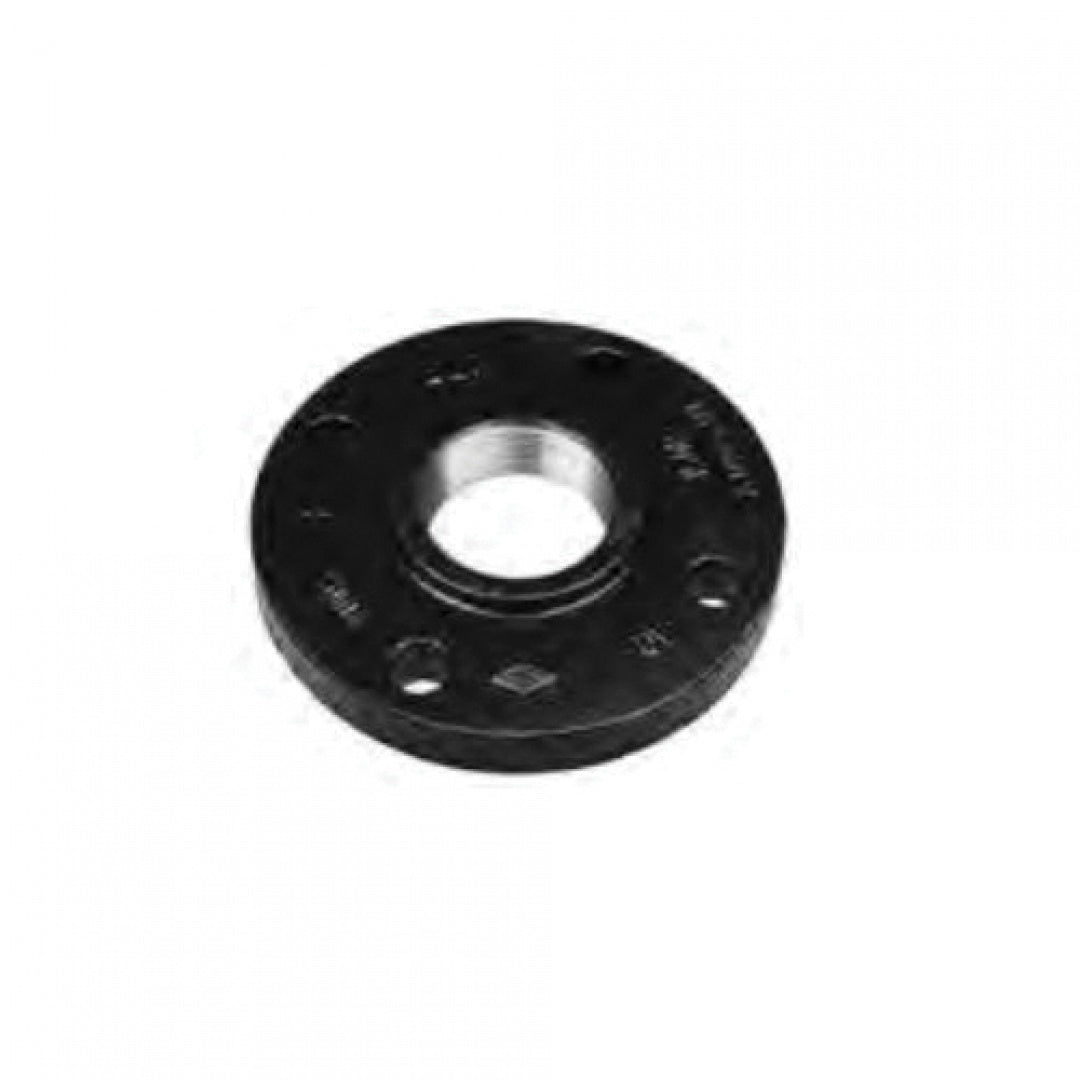

The Midland Metal MFG 108065 is a ductile iron flange with a nominal size of two inches and a threaded connection. It features a bolt circle diameter of four and three-quarters inches and includes four bolt holes for secure installation. This flange is suitable for various applications including waterworks, pumps, and irrigation systems.

• Nominal size of two inches with a four and three-quarters inch bolt circle diameter.
• Manufactured from ductile iron with an electro-phoretic black finish.
• Rated for a pressure class of one hundred fifty pounds.

Product Highlights

This product is designed for durability and reliability in plumbing applications.

Product Information

Standard Information

• Manufacturer: Midland Metal MFG
• Product Type: Companion

Technical Specifications

• Nominal Size: 2 in
• Outside Diameter: 6 in
• Bolt Circle Diameter: 4-3/4 in
• Number of Bolt Holes: 4
• Bolt Hole Size: 3/4 in Dia
• Connection Type: Thread
• Pressure Class: 150 lb
• Finish: Electro-Phoretic
• Domestic/Import: Import
• Dimensions: 1 in H
• Material: Ductile Iron
