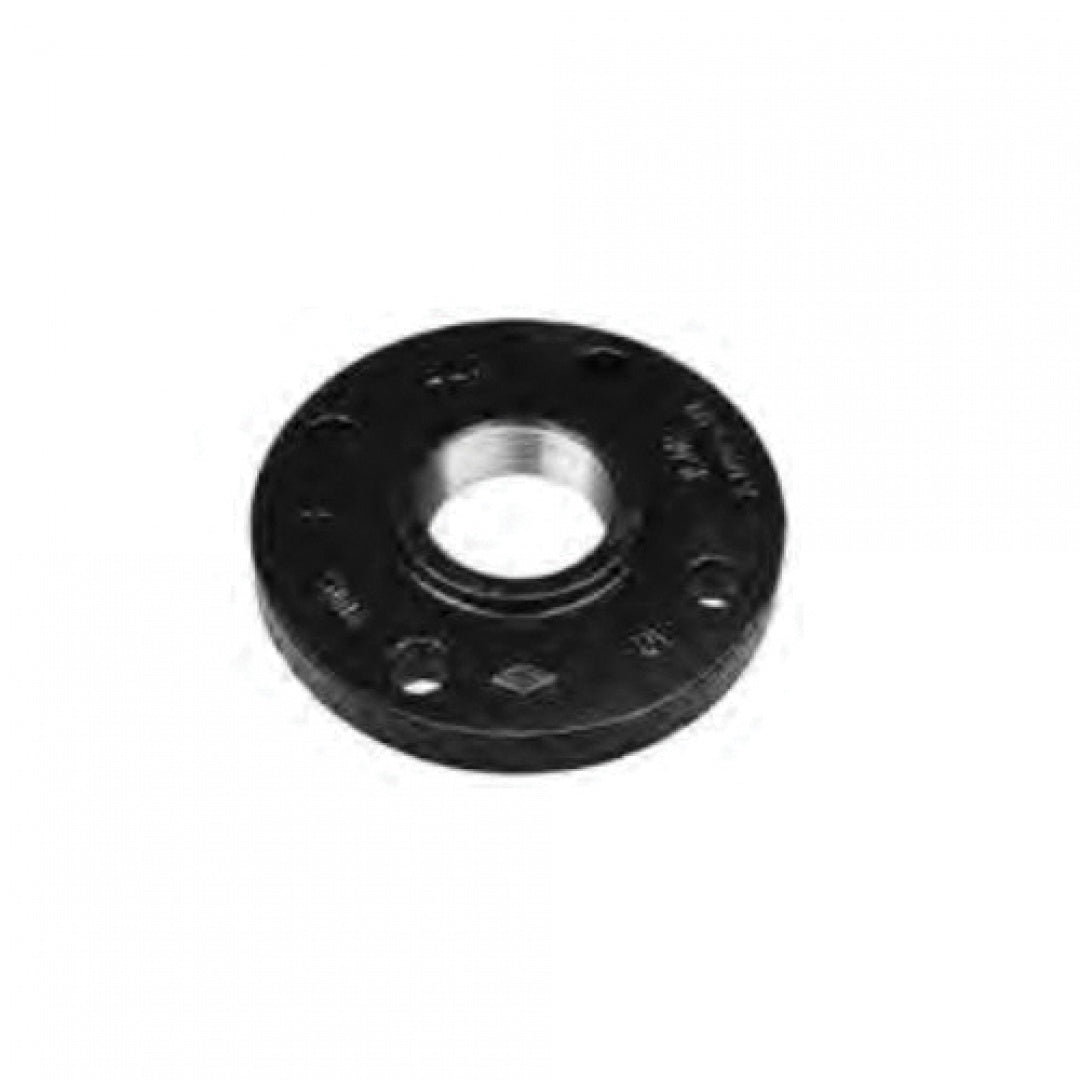

Midland Metal MFG 108064 Ductile Iron Flange 1 1/2 150 Threaded

Product Description

Midland Metal MFG presents the 108064 Ductile Iron Flange. This component measures one and one-half inches in nominal size and features a threaded connection. The flange has a bolt circle diameter of three point eight-eight inches and can accommodate four bolt holes, each five-eighths inches in diameter.

• Nominal Size: 1-1/2 inches
• Material: Ductile Iron
• Pressure Class: 150 pounds

Product Highlights

This flange is suitable for various applications, including waterworks and irrigation systems. It meets industry standards such as ASME B16.42 and AWWA C110.

Product Information

Standard Information

• Manufacturer: Midland Metal MFG
• Connection Type: Thread

Technical Specifications

• Outside Diameter: 5 inches
• Dimensions: 0.88 inches H
• Finish: Electro-Phoretic
• Domestic/Import: Import
• Number of Bolt Holes: 4
• Bolt Circle Diameter: 3.88 inches
• Bolt Hole Size: 5/8 inches Dia
