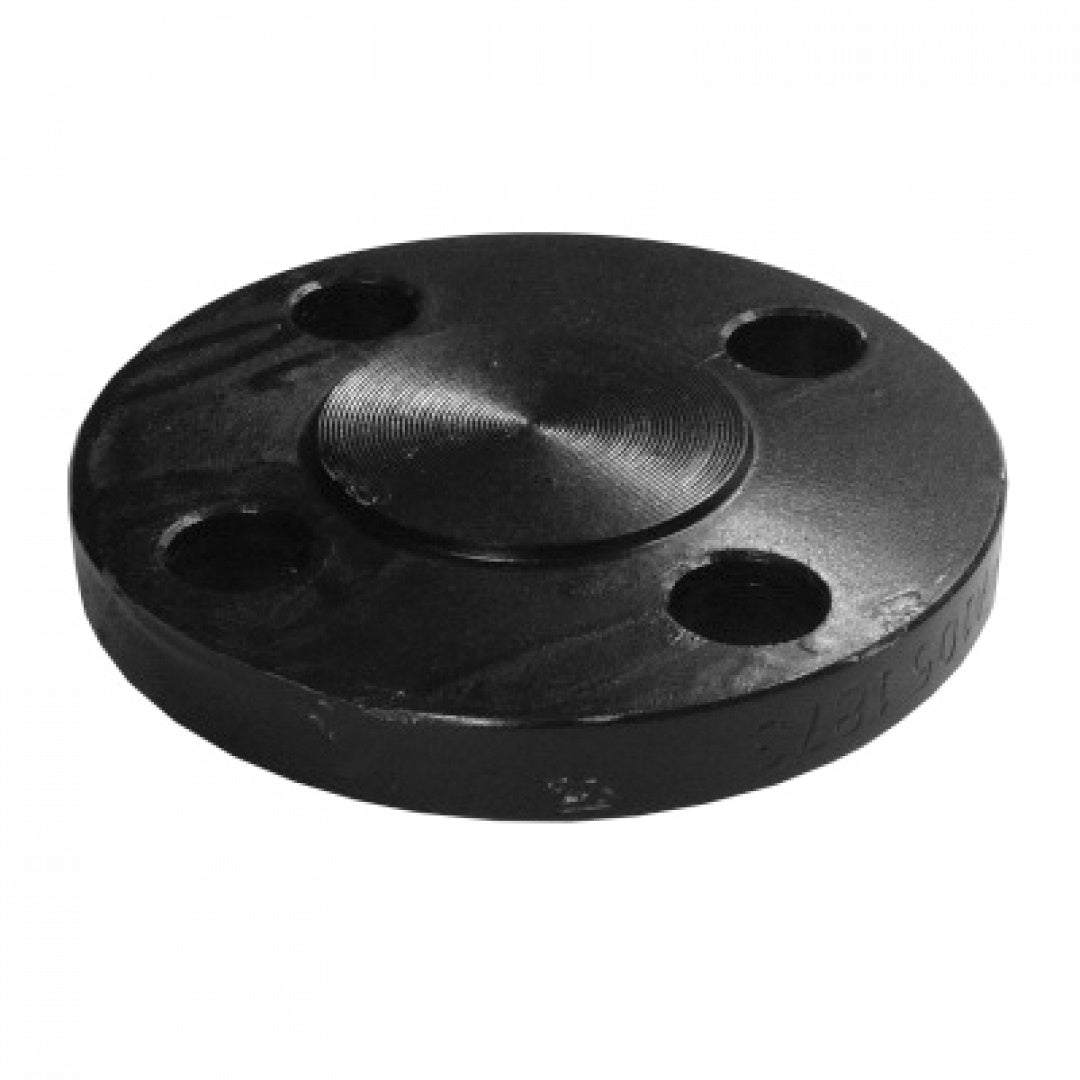

Midland Metal MFG 107047 3 Blind 1/16 RF FS Flange

Product Description

Midland Metal MFG offers the 107047, a raised face flange designed for reliable connections in plumbing systems. This flange features a nominal size of three inches and is made from ASTM A105 forged steel. It is ideal for applications requiring a durable and sturdy connection.

• Raised face design for effective sealing
• Four bolt holes for secure mounting
• Compliant with ASME SA105 and ANSI B16.5 standards

Product Highlights

This flange is suitable for blind connections and is classified as Class 150, making it reliable for various applications in plumbing and industrial settings.

Product Information

Standard Information

• Manufacturer: Midland Metal MFG
• Material: ASTM A105 Forged Steel

Technical Specifications

• Nominal Size: 3 in
• Outside Diameter: 5 in
• Hub Diameter: 4.252 in
• Thickness: 0.941 in
• Bolt Circle Diameter: 6 in
• Bolt Hole Size: 0.752 in
• Number of Bolt Holes: 4
• Pressure Class: Class 150
• Connection Type: Blind
• Domestic/Import: Import
