Midland Metal 707002-0808 Hose Barb Fitting 1/2 inches Hose ID x 1/2 inches Female NPTF Rigid Adapter

Product Description

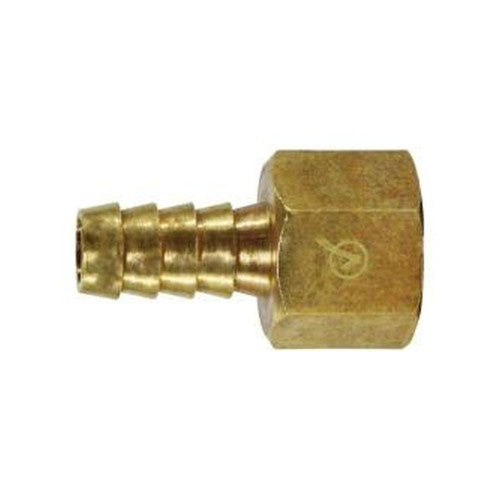

The MIDLAND METAL 707002-0808 is a lead-free brass hose barb fitting, specifically a rigid female adapter. Designed for use with plastic tubing or rubber hose, this fitting ensures a secure connection when used with a hose clamp or crimp-type ferrule. It meets the Safe Drinking Water Act standards.

• Used with plastic tubing or rubber hose.
• Intended for use with hose clamp or crimp type ferrule.
• Temperature Range -40° to 200° F

Product Highlights

This lead-free brass fitting provides a reliable and safe connection for various applications, ensuring compliance with health and safety standards.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 707002-0808

Technical Specifications

• Shape (Orientation): Straight
• Ends Configuration: 1/2in Hose Barb, 1/2in Female NPTF
• Material(s): Lead Free Brass
• Applicable Specs & Approvals: Lead Free as per the Safe Drinking Water Act
• Special Properties: Lead Free
• Connection Size 1: 1/2 in
• Connection Size 2: 1/2 in
• Connection Type: Barbed|FIP
• Connection Type 1: Hose Barbed
• Connection Type 2: FIP
• Fitting Type: Adapter
• For Use With: Hose Clamp, Similar Type Clamp or A Crimped Ferrule
• Hex Size: 0.93 in
• Material: Brass
• Material Construction: Lead-Free Brass
• Maximum Operating Pressure: 150 psi
• Operating Temperature: -40 to 160 deg F
• Shape: Straight
• Specifications and Approvals: Lead Free as per the Safe Drinking Water Act
