Midland Metal 706113-0432 Long Nipple 1/4 inches Male Pipe x 2 inches Male Pipe Replacement 28145LF

Product Description

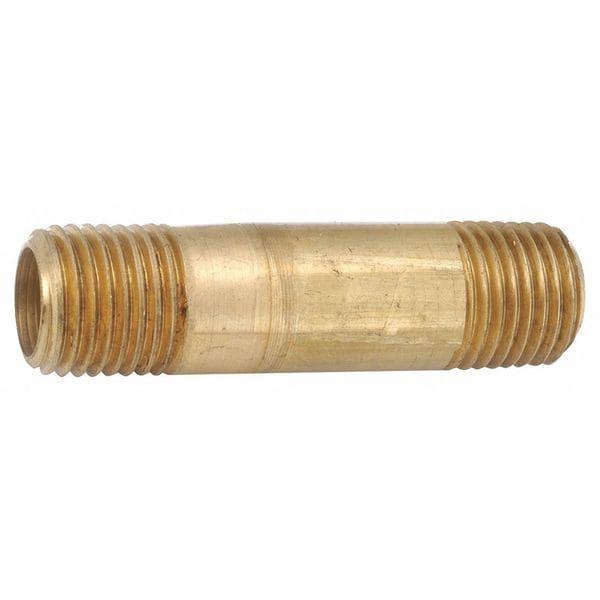

The MIDLAND METAL 706113-0432 is a lead-free brass long nipple fitting with pipe threads. It features a 1/4" Male NPT and 2" Male NPT connection. Suitable for use with air, natural gas, and potable water applications. Recommended to use with Teflon tape or pipe sealant.

• One piece construction.
• All pipe threads are "American Standard Taper Pipe Threads".
• Teflon tape or pipe sealant is recommended.

Product Highlights

Lead-free brass fitting with male NPT connections, ideal for various plumbing and pipe fitting applications.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 706113-0432
• Country of Origin: United States

Technical Specifications

• Shape (Orientation): Straight
• Ends Configuration: 1/4in Male NPT, 2in Male NPT
• Material(s): Lead Free Brass
• Applicable Specs & Approvals: Lead Free as per the Safe Drinking Water Act
• Special Properties: Lead Free
• Connection Size 1: 1/4 in
• Connection Size 2: 2 in
• Connection Type: MPT|MPT
• Connection Type 1: MPT
• Connection Type 2: MPT
• Fitting Type: Nipple
• For Use With: Brass or Steel Pipe
• Length: 2 in
• Material: Low Lead Brass
• Material Construction: Lead-Free Brass
• Thread Size: 1/4-18
• Country of Origin: United States
• Pipe Size - Nominal: 1/4 in
• Overall Pipe Length: 2 in
• Outside Dia.: 1/2 in
• Pipe Size (Fittings): 1/4"
• Pipe Size (Nominal): 1/4"
• Overall Length: 2 in
• Outside Diameter: 1/2 in
• Nominal Pipe Size: 1/4 in
• Pipe Connection Type: Threaded on Both Ends
• Pipe Type: Pipe Nipple
• Pipe Schedule: 40
• Material - Pipe: Low Lead Brass
• Pipe Thread Type: MNPT x MNPT
• Item: Brass Pipe Nipple
• Pipe Fitting Connection Type: MNPT x MNPT
• Material (Pipe): Low Lead Brass
• Pipe Fitting Schedule/Class: Schedule 40
• Temp. Range: -65 to 250 Degrees F
• Basic Pipe Fitting Shape: Nipple
• Standards: NSF 61 Annex G
• Pressure (PSI): 1200
• Pipe Fitting Material: Low Lead Brass
• Basic Pipe Fitting Material: Metal
• Specific Pipe Fitting Shape: Nipple
• Application: Air, Natural Gas, Potable Water
• Material Grade: CA2745
• Maximum Operating Temperature: 250 Degrees F
• Side A Gender: Male
• Side B Connection Type: Threaded
• Side B Thread Type: NPT
• Metal Pipe Construction: Seamless
• Thread Configuration: Threaded on Both Ends
• Side A Thread Type: NPT
• Maximum Steam Pressure: 1200 psi
• Maximum Operating Pressure: 1000 psi @ 200 Degrees F
• Side A Connection Type: Threaded
• Schedule: Schedule 40
• Side B Gender: Male
• Minimum Operating Temperature: -65 Degrees F
• Gravity Flow: Yes
• Manufacture Location: Globally Sourced
