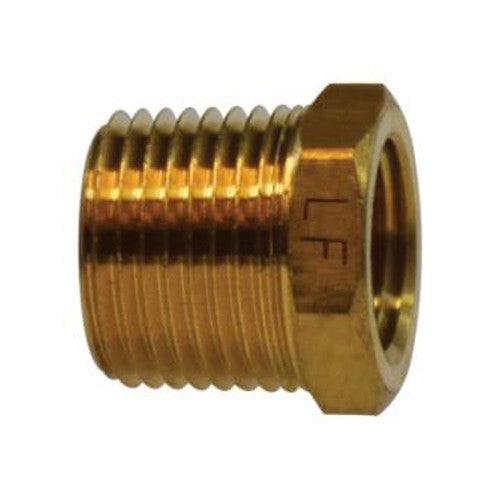

Midland Metal 706110-0402 Hex Bushing 1/4 inches Male Pipe x 1/8 inches Female Pipe

Product Description

The MIDLAND METAL 706110-0402 is a lead-free brass hex bushing used in low to medium pressure applications with brass or steel pipes. It features a 1/4" male NPT to 1/8" female NPT connection. This fitting meets specifications and standards in Section 1417 of the Safe Drinking Water Act.

• One piece construction.
• All pipe threads are "American Standard Taper Pipe Threads".
• Teflon tape or pipe sealant is recommended.

Product Highlights

Lead-free brass hex bushing with 1/4" male NPT and 1/8" female NPT connections, suitable for brass or steel pipes.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 706110-0402

Technical Specifications

• Shape (Orientation): Straight
• Ends Configuration: 1/4in Male NPT, 1/8in Female NPT
• Material(s): Lead Free Brass
• Applicable Specs & Approvals: Lead Free as per the Safe Drinking Water Act
• Special Properties: Lead Free
• Connection Size 1: 1/4 in
• Connection Size 2: 1/8 in
• Connection Type: MPT|FPT
• Connection Type 1: MPT
• Connection Type 2: FPT
• Fitting Type: Bushing
• For Use With: Brass or Steel Pipe
• Hex Size: 0.56 in
• Length: 0.62 in
• Material: Brass
• Material Construction: Lead-Free Brass
• Thread Size: 1/8-27
• Type: MIP x FIP Hex Bushing
