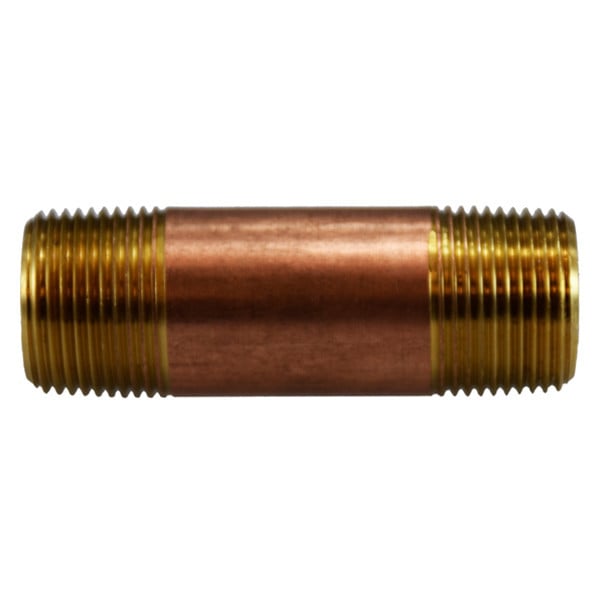

Midland Metal 40090 Brass Nipple (3/4 x 6)

Product Description

Midland Metal 40090 is a 3/4 x 6 brass pipe nipple intended for plumbing and fittings. It has 3/4-14 male pipe threads (MPT) on both ends and schedule 40 construction. Internal diameter is 0.822 in with a 1.05 in outside diameter and 0.114 in wall thickness. The nipple is rated to 810 psi at 100°F, operates from -20 to 400°F, and conforms to ANSI B1.20.1 and related standards.

• 3/4-14 MPT x MPT threads, 6 in length
• Material: red brass; ID 0.822 in, OD 1.05 in, wall thickness 0.114 in
• Schedule 40 construction; pressure rating 810 psi at 100°F; temperature range -20 to 400°F; meets ANSI B1.20.1, WW-N-351, MS 51846

Product Highlights

3/4 in MPT x MPT brass nipple, 6 in length, SCH 40, 810 psi at 100°F, -20 to 400°F

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 40090
• Country of Origin: Unknown

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 40090
• Product Type: Nipple
• Material: Red brass
• Connection Size 1: 3/4 in
• Connection Type 1: MPT
• Connection Size 2: 3/4 in
• Connection Type 2: MPT
• Thread Size: 3/4-14
• Length: 6 in
• Inner Diameter: 0.822 in
• Outer Diameter: 1.05 in
• Wall Thickness: 0.114 in
• Schedule Rating: SCH 40
• Pressure Rating: 810 psi at 100°F
• Temperature Range: -20 to 400 °F
• Standards: ANSI B1.20.1; WW-N-351; MS 51846
• Weight: 0.550 lb
• Package Quantity: 1
• Application: Plumbing and fittings
• Thread Form: MPT x MPT
• Country of Origin: Unknown
