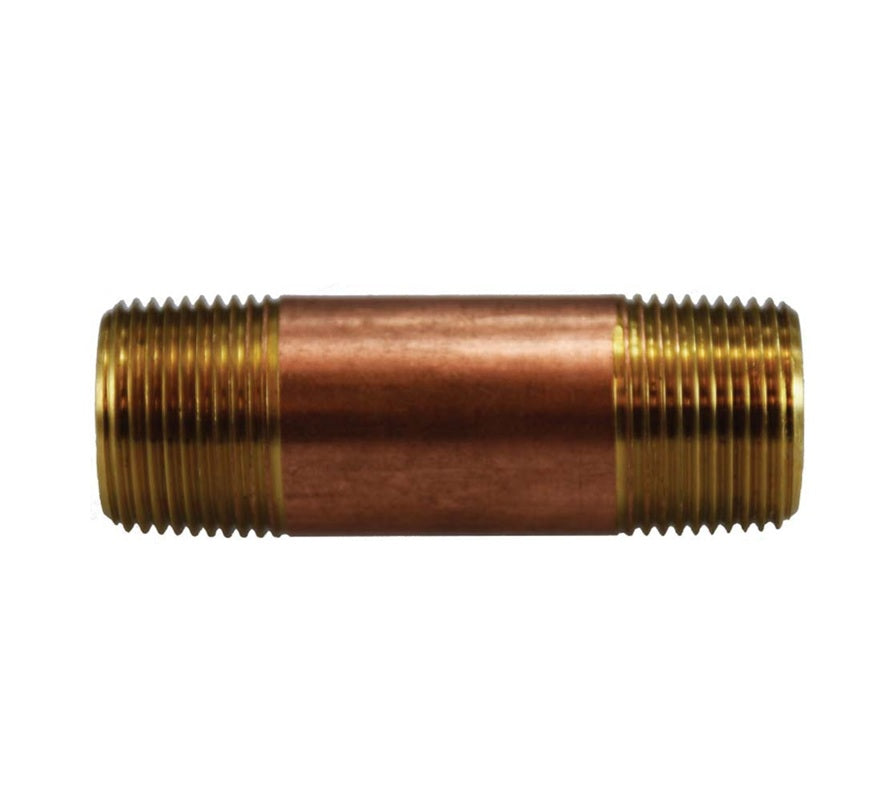

Midland Metal 40088 3/4 x 5 Brass Nipple (5 in)

Product Description

The Midland Metal 40088 is a 3/4 x 5 inch brass nipple designed for joining or extending threaded pipe runs. It is a single-piece, straight Schedule 40 fitting with male pipe threads on both ends (MPT). The nipple has a 0.114 in wall thickness, 3/4-14 thread size, and is rated to 810 psi at 100 deg F with a temperature range of -20 to 400 deg F. It meets ANSI B1.20.1 dimensional standards and is suitable for plumbing and marine applications.

• Lead-free red brass construction; straight Schedule 40 pipe nipple
• 3/4 in male pipe threads both ends (3/4-14 MPT); 5 in overall length
• 0.114 in wall thickness; pressure rating 810 psi at 100 F; temperature range -20 to 400 F

Product Highlights

3/4 x 5 in brass nipple with MPT connections, SCH 40, 0.114 in wall, 810 psi rating, ANSI B1.20.1 compliant

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 40088
• Country of Origin: Unknown

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 40088
• Material: Lead-free red brass
• Size (Diameter x Length): 3/4 in x 5 in
• Length: 5 in
• Connection Type: Male pipe thread (MPT) both ends
• Thread Size: 3/4-14
• Wall Thickness: 0.114 in
• Schedule Rating: SCH 40
• Pressure Rating: 810 psi at 100 deg F
• Temperature Rating: -20 to 400 deg F
• Dimension Standards: ANSI B1.20.1
• Shape: Straight nipple
• Weight: 0.460 lb
• Category: Nipples and Fittings
• UPC: 787907620882
• Package Quantity: 1
