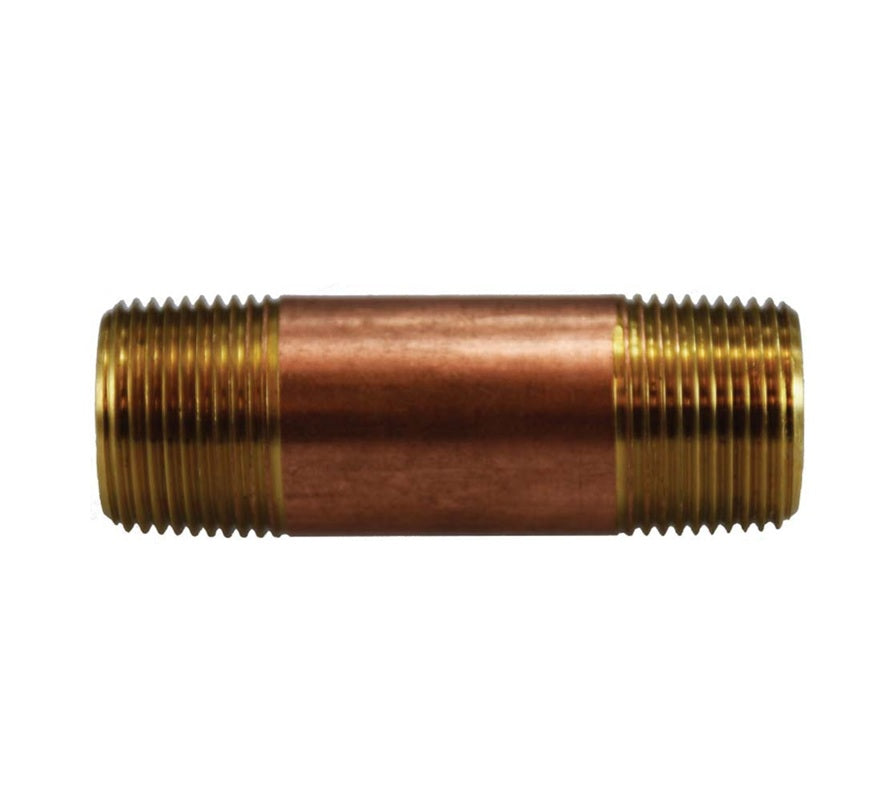

Midland Metal 40086 Brass Nipple 3/4 x 4 (40-086)

Product Description

The Midland Metal 40086 is a brass pipe nipple with 3/4-14 threaded connections and a nominal 4 in length. Constructed of red brass with seamless construction, it is rated SCH 40 and meets ANSI B1.20.1, WW-N-351 and MS 51846 standards. The nipple has an inner diameter of 0.822 in, outer diameter of 1.05 in, wall thickness 0.114 in, a pressure rating of 810 psi at 100°F and a service temperature range of -20 to 400°F.

• 3/4-14 threaded connection, 4 in nominal length, straight seamless nipple
• Red brass material, inner diameter 0.822 in, outer diameter 1.05 in, wall thickness 0.114 in
• SCH 40 schedule, pressure rating 810 psi at 100°F, temperature range -20 to 400°F; meets ANSI B1.20.1

Product Highlights

3/4-14 threaded red brass nipple, 4 in length, SCH 40, 810 psi at 100°F, -20 to 400°F

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 40086
• Country of Origin: Unknown

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number (MPN): 40086
• Replacement MPN: 40-086
• Product Type: Brass nipple / Pipe fitting
• Thread Size: 3/4-14
• Connection Type: NPT
• Connection Configuration: Male threads both ends
• Length: 4 in
• Inner Diameter: 0.822 in
• Outer Diameter: 1.05 in
• Wall Thickness: 0.114 in
• Material: Red brass
• Construction: Seamless
• Schedule Rating: SCH 40
• Pressure Rating: 810 psi at 100
