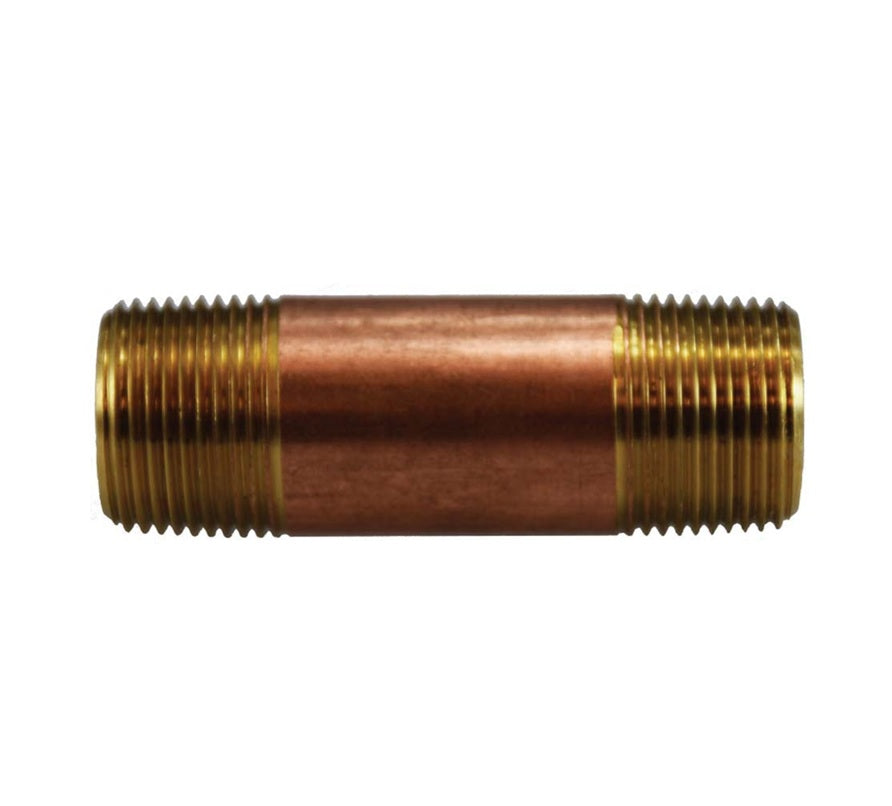

Midland Metal 40084 Brass Nipple (3/4 x 3) 40-084

Product Description

Midland Metal 40084 is a 3/4 x 3 brass nipple for threaded pipe connections. It has 3/4-14 MPT male threads on both ends, a 3 in length, 0.822 in inner diameter and 1.05 in outer diameter with 0.114 in wall thickness. Constructed from lead-free red brass (Alloy 230) with a Schedule 40 rating, it is rated 810 psi at 100 F and usable from -20 to 400 F. Conforms to ANSI B1.20.1, WW-N-351 and MS 51846.

• Lead-free red brass construction (Alloy 230); composition 85% copper, 15% zinc
• 3/4-14 MPT male threads both ends; nominal connection 3/4 in x 3 in; ID 0.822 in, OD 1.05 in, wall 0.114 in
• Schedule 40; pressure class 125 lb (810 psi at 100 F); temperature range -20 to 400 F; meets ANSI B1.20.1, WW-N-351, MS 51846

Product Highlights

Seamless lead-free red brass nipple, 3/4-14 MPT, 3 in length, SCH 40, rated 810 psi at 100 F

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 40084
• Country of Origin: Unknown

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 40084
• Alternate Part Number: 40-084
• Product Name: Brass Nipple
• Connection Size: 3/4 in
• Length: 3 in
• Connection Type: MPT (male pipe thread)
• Thread Size: 3/4-14
• Thread Type: Male NPT (tapered)
• Inner Diameter: 0.822 in
• Outer Diameter: 1.05 in
• Wall Thickness: 0.114 in
• Schedule Rating: SCH 40
• Pressure Rating: 810 psi at 100 F
• Pressure Class: 125 lb
• Temperature Range: -20 to 400 F
• Material: Lead-free red brass (Alloy 230)
• Composition: 85% copper, 15% zinc
• Standards / Certifications: ANSI B1.20.1; WW-N-351; MS 51846; NSF/ANSI 61; ASTM B687-97; MS51872
• Shape: Straight nipple
