Midland Metal 40083 Brass Nipple 3/4 x 2-1/2 (106-R-1240)

Product Description

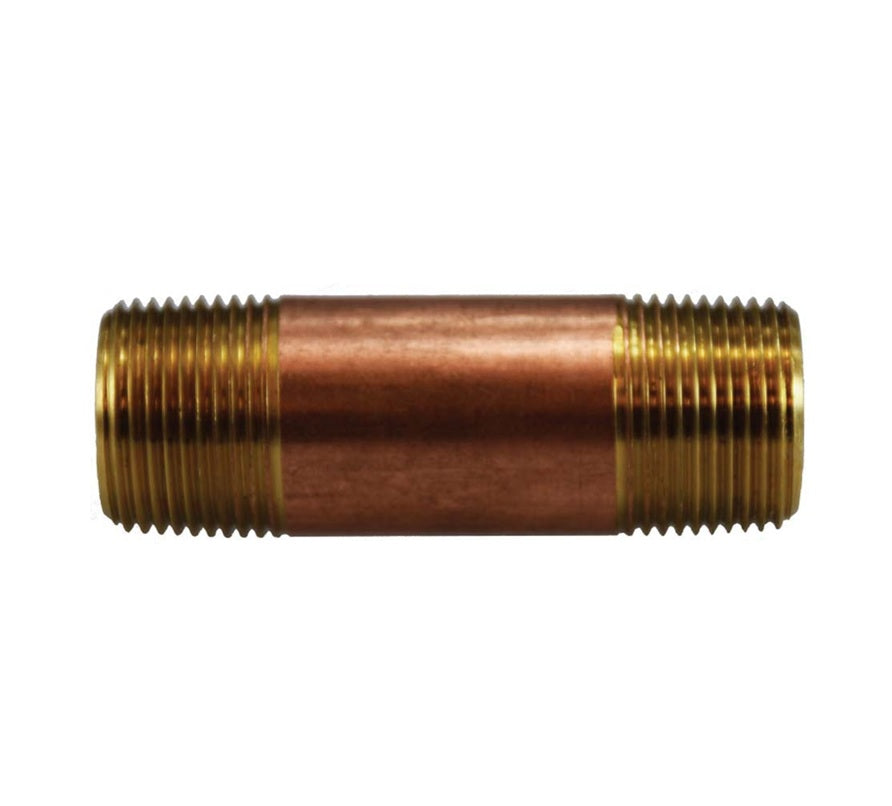

Midland Metal 40083 is a brass pipe nipple with 3/4 in male pipe tapered (MPT) threads on both ends and a 2-1/2 in overall length. The seamless, lead-free red brass construction is rated Schedule 40 with a 3/4-14 thread and a wall thickness of 0.114 in. It is specified for plumbing and pipe fitting applications with a pressure rating of 810 psi at 100 F and a temperature range of -20 to 400 F.

• Connection: 3/4 in MPT x 3/4 in MPT with 3/4-14 threads; length 2-1/2 in
• Material and rating: lead-free red brass, Schedule 40, wall thickness 0.114 in
• Performance: pressure rating 810 psi at 100 F (pressure class 125 lb); temperature range -20 to 400 F

Product Highlights

Seamless brass nipple, 3/4 in MPT threads, 2-1/2 in length; Schedule 40 and 810 psi rating.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 40083
• Country of Origin: Unknown

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 40083
• Alternate MPNs: 106-R-1240
• Product Type: Brass nipple
• Material: Lead-free red brass
• Connection Size: 3/4 in
• Connection Type: MPT (male pipe tapered) on both ends
• Thread Size: 3/4-14
• Length: 2-1/2 in
• Inner Diameter: 0.822 in
• Outer Diameter: 1.05 in
• Wall Thickness: 0.114 in
• Schedule Rating: SCH 40
• Pressure Rating: 810 psi at 100 deg F
• Pressure Class: 125 lb
• Temperature Range: -20 to 400 F
• Standards: ANSI B1.20.1; WW-N-351; MS 51846
• Shape: Straight
• Package Quantity: 1
