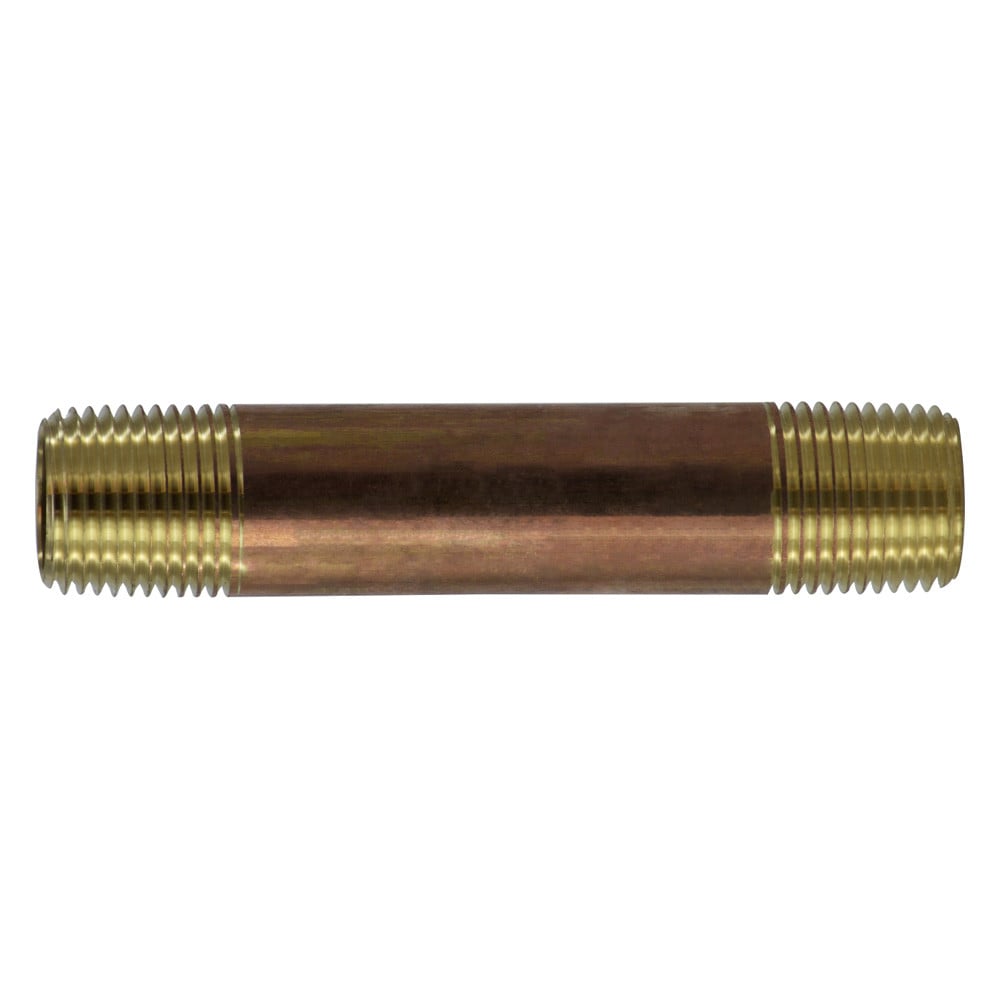

Midland Metal 40068 1/2 x 5 Brass Nipple (Pack 1) 4450

Product Description

Midland Metal 40068 is a 1/2-inch by 5-inch brass pipe nipple designed for use as a plumbing or pipe fitting connector. The nipple features 1/2-14 male threads on both ends (MPT) and Schedule 40 wall construction. Typical applications include plumbing and marine pipe connections where a threaded inline coupling is required. The part is offered as a single-piece new fitting and conforms to common thread and dimensional standards.

• 1/2 in nominal size with approximately 0.84 in OD and 0.626 in ID; 5 in length; 1/2-14 thread size and MPT connections on both ends
• Brass construction with Schedule 40 wall and 0.107 in wall thickness
• Rated 900 psi at 100°F; temperature range -20 to 400°F

Product Highlights

1/2 in x 5 in brass pipe nipple; 1/2-14 MPT both ends; SCH 40; 900 psi @100°F; -20 to 400°F

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 40068
• Country of Origin: Unknown

Technical Specifications

• Brand: Midland Metal
• Manufacturer: Midland Metal
• MPN: 40068
• Product Type: Hose/Pipe Fitting
• Fitting Type: Nipple
• Size: 1/2" (nominal)
• Length: 5 in
• Thread Size: 1/2-14 (1/2-14 NPT / MPT)
• Connection Type: MPT|MPT
• Material: Brass
• Schedule Rating: SCH 40
• Wall Thickness: 0.107 in
• Pressure Rating: 900 psi at 100 deg F
• Temperature Rating: -20 to 400 deg F
• Inner Diameter: 0.626 in
• Outer Diameter: 0.84 in
• Dimension Standards: ANSI B1.20.1; WW-N-351; MS 51846
• Package Quantity: 1
• Condition: New
• Alternate MPNs: 4450, 201350, 700405, 106-R-880, 11204X0050RR, 113-D5, 113RB-D5, 2008-500, 350457, 38-40068, 4568K179, 4422346, 6618708459800, 6.61871E+12, 86NI4004050C, BR125N, BRN-0550, NA-0550, NBR035
