Midland Metal 40062 12 x 2 Brass Nipple (2 in) 40-062

Product Description

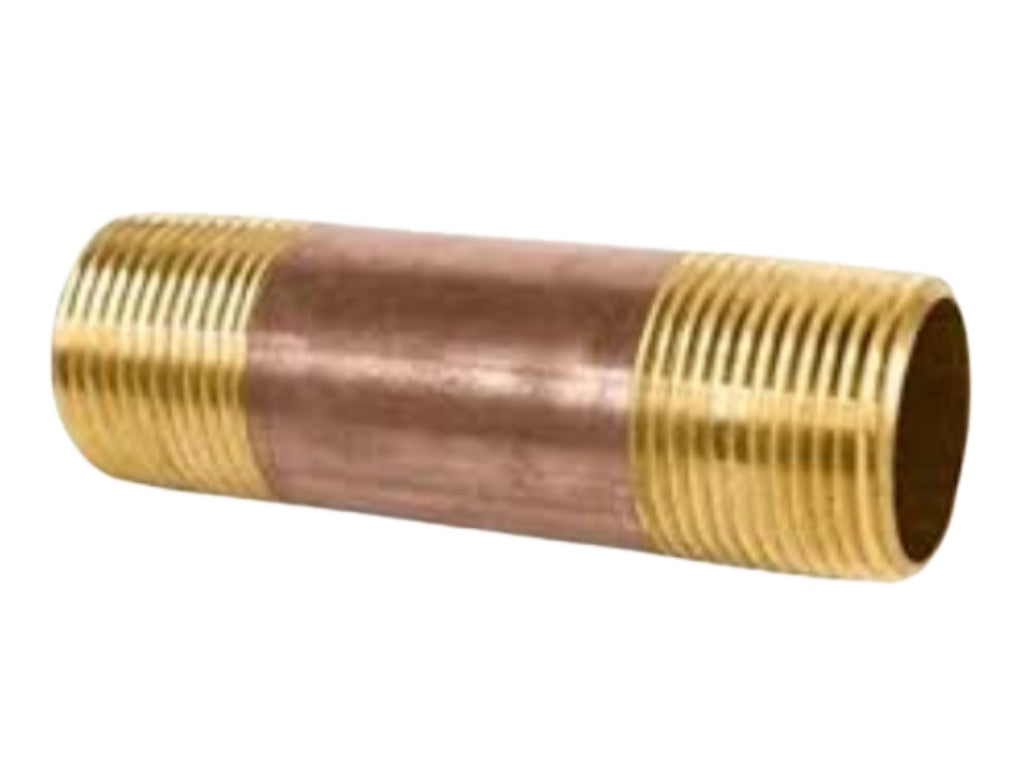

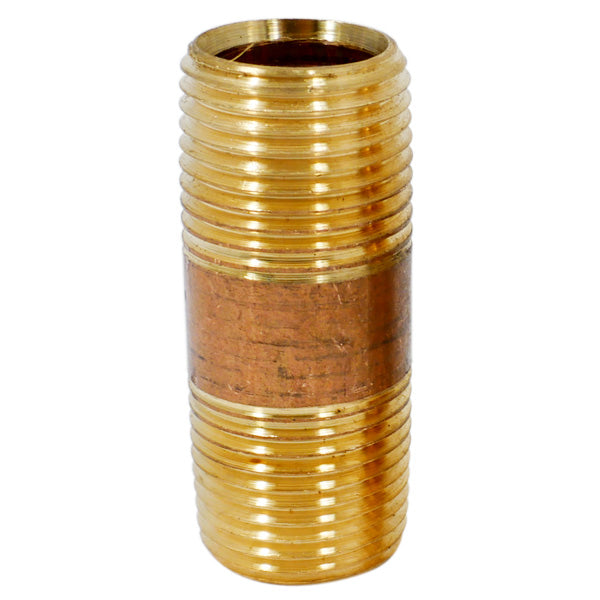

Midland Metal 40062 is a brass pipe nipple labeled "12 x 2" intended for plumbing applications. The fitting is a seamless red brass nipple with 1/2 in MPT threads on both ends and a 2 in overall length. It is Schedule 40 with a 1/2-14 thread, 0.107 in wall thickness, and a pressure rating of 900 psi at 100°F; service temperature range is -20 to 400°F.

• Seamless lead-free red brass (Alloy 230) construction with approximately 85% copper and 15% zinc
• 1/2 in MPT (male NPT) x 1/2 in MPT connections, 1/2-14 thread, 2 in length, inner diameter 0.626 in and outer diameter 0.84 in
• Schedule 40 rating, wall thickness 0.107 in, pressure class 125 lb and 900 psi at 100°F; conforms to ANSI B1.20.1, ASTM B687-97 and applicable military/WW standards

Product Highlights

1/2 in MPT x 2 in seamless red brass nipple, 1/2-14 thread, SCH 40, 900 psi at 100°F

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 40062
• Country of Origin: Unknown

Technical Specifications

• Brand: Midland Metal
• MPN: 40062
• Alternate MPN: 40-062
• Product Name: 12 x 2 Brass Nipple
• Material: Lead-free red brass (Alloy 230)
• Chemical Composition: Approx. 85% copper, 15% zinc
• Connection Size 1: 1/2 in
• Connection Type 1: MPT (male NPT)
• Connection Size 2: 1/2 in
• Connection Type 2: MPT (male NPT)
• Length: 2 in
• Inner Diameter: 0.626 in
• Outer Diameter: 0.84 in
• Thread: 1/2-14
• Schedule Rating: SCH 40
• Wall Thickness: 0.107 in
• Pressure Rating (at 100°F): 900 psi
• Temperature Range: -20 to 400 °F
• Standards / Certifications: ANSI B1.20.1; WW-N-351; MS 51846; ASTM B687-97; NSF/ANSI 61; complies with CA Health & Safety Code 116875 (AB1953) and Vermont Act 193
