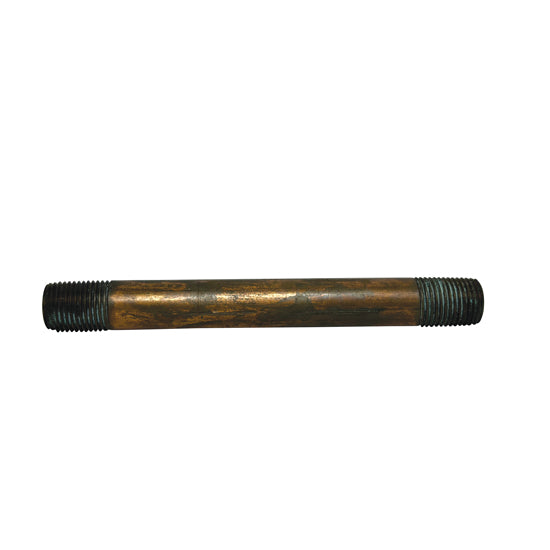

Midland Metal 40006 Brass Nipple (1/8 x 3-1/2) 40-006

Product Description

Midland Metal 40006 is a lead-free red brass MPT-to-MPT pipe nipple with 1/8-27 threads and a 3-1/2 inch length. The seamless brass fitting has a 0.281 inch inner diameter, 0.405 inch outer diameter and 0.062 inch wall thickness, and is schedule 40 rated. It meets ANSI B1.20.1, WW-N-351 and MS 51846 dimension standards and is rated to 370 psi at 100°F with a temperature range of -20 to 400°F.

• Lead-free red brass seamless construction with 0.062 in wall thickness
• 1/8-27 MPT to MPT connection; 1/8 in connection size; 3-1/2 in length
• Schedule 40; pressure rating 370 psi at 100°F; temperature range -20 to 400°F

Product Highlights

Seamless lead-free brass nipple, 1/8-27 MPT, 3-1/2 in, SCH 40, 370 psi

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 40006

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 40006
• Alternate Part Number: 40-006
• Product Type: Nipple
• Material: Lead-Free Red Brass
• Connection Type: MPT to MPT
• Connection Size: 1/8 in x 1/8 in
• Thread Size: 1/8-27
• Length: 3-1/2 in
• Inner Diameter: 0.281 in
• Outer Diameter: 0.405 in
• Wall Thickness: 0.062 in
• Schedule Rating: SCH 40
• Pressure Rating: 370 psi at 100 deg F
• Temperature Rating: -20 to 400 deg F
• Dimension Standards: ANSI B1.20.1; WW-N-351; MS 51846
• Weight: 0.070 lb
• Fitting Type: Seamless pipe nipple
• Category: Nipples and Fittings
