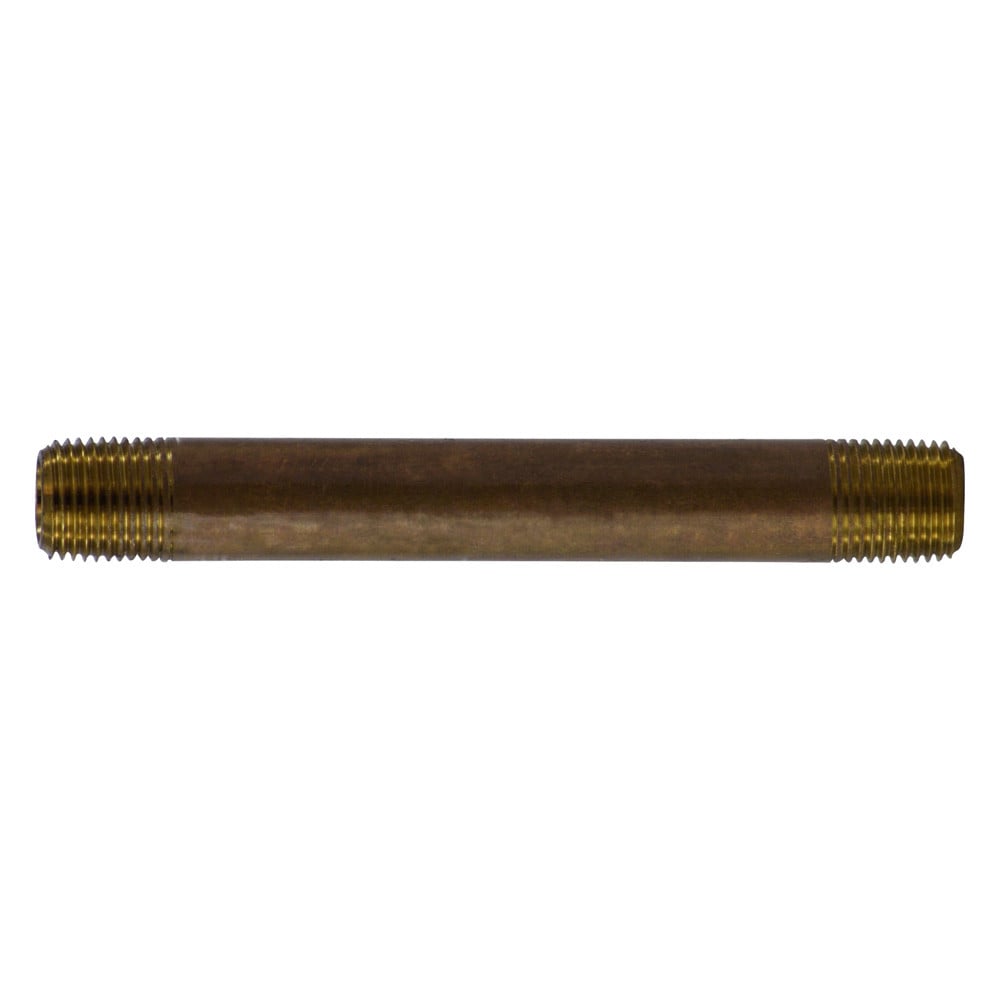

Midland Metal 40005 Seamless Pipe Nipple 1/8 in x 3 in

Product Description

Midland Metal 40005 is a seamless lead-free red brass pipe nipple with 1/8-27 MPT threads and a 3 in length. The fitting has a 0.281 in inner diameter, 0.405 in outer diameter and 0.062 in wall thickness, with a SCH 40 rating and a 125 lb pressure class (370 psi at 100 deg F). It meets ANSI B1.20.1, WW-N-351 and MS 51846 standards for plumbing and marine use.

• Lead-free red brass construction with seamless design and 1/8-27 MPT threads on both ends
• Dimensions: 3 in length; ID 0.281 in; OD 0.405 in; wall thickness 0.062 in; Schedule 40
• Pressure and temperature: 125 lb class (370 psi at 100 deg F); temperature range -20 to 400 deg F; meets ANSI B1.20.1, WW-N-351, MS 51846

Product Highlights

Seamless 1/8 in MPT brass nipple, 3 in long, SCH 40, 125 lb class, -20 to 400 deg F

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 40005

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 40005
• Type: Nipple
• Construction: Seamless
• Material: Lead-Free Red Brass
• Length: 3 in
• Thread Spec: 1/8-27
• Connection Size: 1/8 in
• Connection Type: MPT (male pipe thread)
• Inner Diameter: 0.281 in
• Outer Diameter: 0.405 in
• Wall Thickness: 0.062 in
• Schedule Rating: SCH 40
• Pressure Class: 125 lb
• Pressure Rating: 370 psi at 100 deg F
• Temperature Range: -20 to 400 deg F
• Dimension Standards: ANSI B1.20.1; WW-N-351; MS 51846
• Applications: Plumbing; marine
• Condition: New
• Notes: Not to be used in potable water systems
