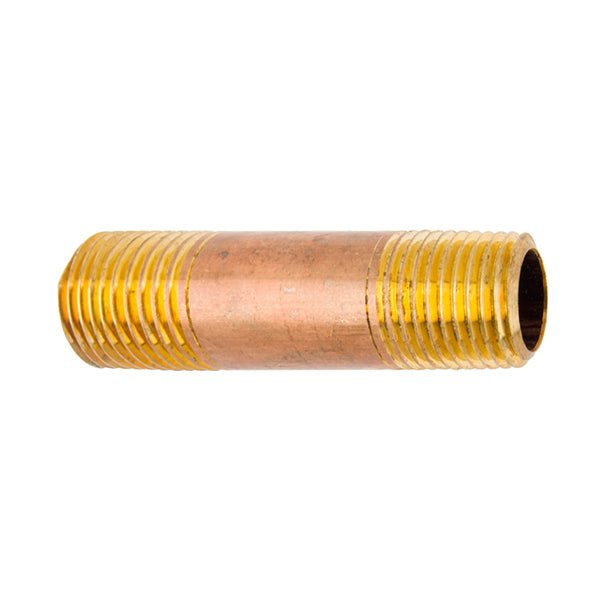

Midland Metal 40004 Seamless Pipe Nipple 1/8 In MPT x 1/8 In MPT 2-1/2 In (27908)

Product Description

Midland Metal 40004 is a seamless lead-free red brass pipe nipple with 1/8 in MPT threads on both ends and a 2-1/2 in overall length. It has 1/8-27 threads, a 0.281 in inner diameter, 0.405 in outer diameter, and a 0.062 in wall thickness. The fitting is Schedule 40 rated, pressure class 125 lb (370 psi at 100 deg F), meets ANSI B1.20.1, WW-N-351, and MS 51846, and operates from -20 to 400 deg F.

• Seamless lead-free red brass construction with 1/8-27 male pipe threads (MPT) both ends
• Dimensions: 2-1/2 in length; 0.281 in ID; 0.405 in OD; 0.062 in wall thickness; Schedule 40
• Rated 370 psi at 100 deg F (pressure class 125 lb); temperature range -20 to 400 deg F; meets ANSI B1.20.1, WW-N-351, MS 51846

Product Highlights

Seamless lead-free red brass 1/8 in MPT x 1/8 in MPT nipple, 2-1/2 in length; 1/8-27 thread; 370 psi at 100 deg F; -20 to 400 deg F.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 40004

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 40004
• Alternate Part Numbers: 27908; 40-004; 101135.13; 11101X0024R; R113-02-2.5-R; 113-2-40; 113RB-A25; 1VGG9; 2002-250; 201025; 3329x2; 350347; 38300-0225; 4125; 440067-131280; 4422481; 4568K114; 460-025; 6618702369800; 7001025; 73329-2; 80300-0225; 86NI4001024C; BN 1/8X21/2; BP113-2-25; BR18212N; BRN-0125; D113RA2 1/2; D113R-A2 1/2; N20-003; NA-0125; NBR00212; NPBR1825
• Material: Lead-Free Red Brass
• Type: Seamless Pipe Nipple
• Size: 1/8 in diameter x 2-1/2 in length
• Connection Type: MPT (male pipe thread) both ends
• Connection Size: 1/8 in
• Thread Size: 1/8-27
• Inner Diameter (ID): 0.281 in
• Outer Diameter (OD): 0.405 in
• Wall Thickness: 0.062 in
• Length: 2-1/2 in
• Schedule Rating: SCH 40
• Pressure Class: 125 lb
• Pressure Rating: 370 psi at 100 deg F
• Temperature Range: -20 to 400 deg F
• Dimension Standards: ANSI B1.20.1; WW-N-351; MS 51846
• Category: Nipples and Fittings
