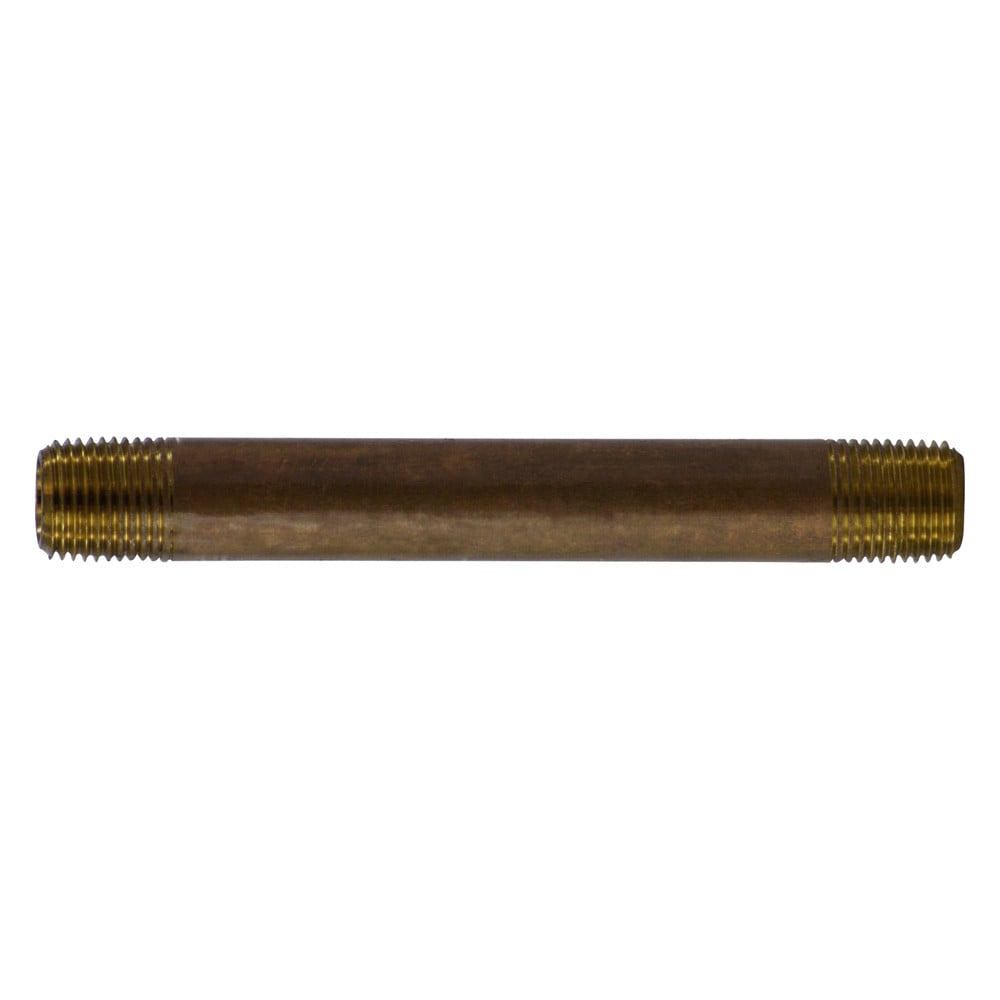

Midland Metal 40003 Seamless Pipe Nipple (1/8 in MPT x 2 in) 201020

Product Description

The Midland Metal 40003 is a seamless lead-free red brass pipe nipple with 1/8 in MPT threads and a 2 in length. It has a 0.062 in wall thickness, 0.281 in inside diameter and 0.405 in outside diameter, 1/8-27 thread, and a Schedule 40 rating. Pressure class is 125 lb (370 psi at 100 F). It meets ANSI B1.20.1, WW-N-351, and MS 51846 standards and operates from -20 to 400 F.

• Seamless lead-free red brass construction with 1/8 in MPT x 1/8 in MPT connections and 1/8-27 thread
• Dimensions: 2 in length; 0.281 in inside diameter; 0.405 in outside diameter; 0.062 in wall thickness; Schedule 40
• Pressure class 125 lb (370 psi at 100 F); temperature range -20 to 400 F; conforms to ANSI B1.20.1, WW-N-351, MS 51846

Product Highlights

Seamless red brass nipple, 1/8 in MPT x 2 in, Schedule 40, 125 lb pressure class

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 40003

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 40003
• SKU: 40003
• Material: Lead-Free Red Brass
• Type: Seamless Pipe Nipple
• Connection 1 Size: 1/8 in
• Connection 1 Type: MPT
• Connection 2 Size: 1/8 in
• Connection 2 Type: MPT
• Thread: 1/8-27
• Length: 2 in
• Size: 1/8 x 2 in
• Inside Diameter: 0.281 in
• Outside Diameter: 0.405 in
• Wall Thickness: 0.062 in
• Schedule Rating: SCH 40
• Pressure Class: 125 lb (370 psi at 100 F)
• Standards: ANSI B1.20.1; WW-N-351; MS 51846
• Temperature Range: -20 to 400 F
• Item Weight: 0.040 lb
• Shape: Straight
• Alternate MPNs: 201020, 11101X0020RR, 1VGG7, 2002-200, 4120, 350346, 38-40003, 4568K113, 700102, 4422480, 6618702329800, 86NI4001020C, BP113-2-20, BR182N, BRN-0120, NA-0120, NBR002
