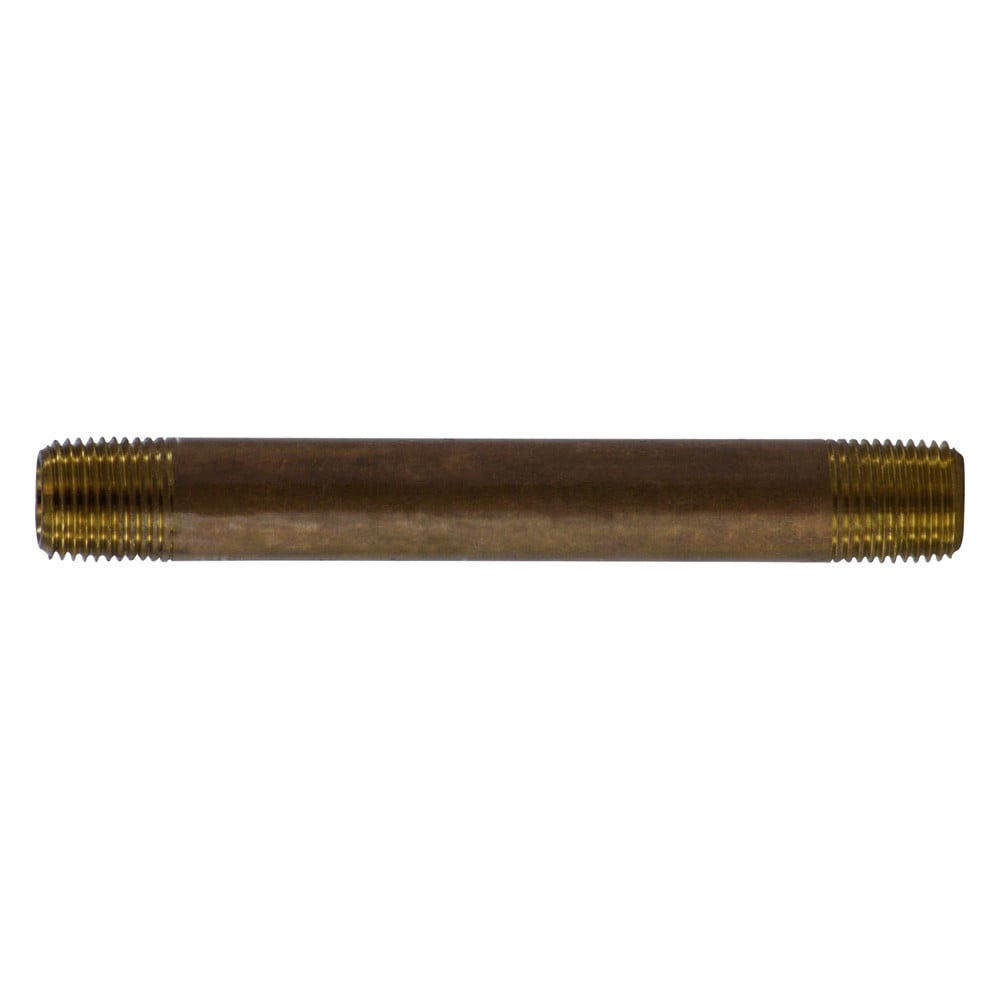

Midland Metal 40002 seamless pipe nipple 1/8 in MPT x 1/8 in MPT 1-1/2 in replacement 16021

Product Description

Midland Metal 40002 is a seamless lead-free red brass pipe nipple with 1/8 in MPT male threads on both ends and a 1-1/2 in overall length. It has 1/8-27 threads, 0.281 in inner diameter, 0.405 in outer diameter, and 0.062 in wall thickness. The fitting is SCH 40 rated, rated to 370 psi at 100 deg F, and is suitable for plumbing and marine fittings, meeting ANSI B1.20.1, WW-N-351, and MS 51846.

• Seamless lead-free red brass construction with 1/8 in MPT threads on both ends and 1/8-27 thread size
• Dimensions: 1-1/2 in length; inner diameter 0.281 in; outer diameter 0.405 in; wall thickness 0.062 in
• Ratings and standards: SCH 40; 370 psi at 100 deg F; temperature range -20 to 400 deg F; ANSI B1.20.1; WW-N-351; MS 51846

Product Highlights

Seamless lead-free red brass 1/8-27 threaded nipple, 1-1/2 in length, SCH 40 with 370 psi at 100 deg F rating

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 40002

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 40002
• Alternate Part Numbers: 16021, 11101X0014RR, 2002-150, 4115, 201015, 350345, 38-40002, 4568K112, 4422479, 7001015, 6.6187E+12, 6618702249800, 86NI4001014C, BP113-2-15, BR18112N, BRN-0115, NA-0115, NBR00112
• Material: Lead-Free Red Brass
• Fitting Type: Nipple
• Connection Type: MPT (male pipe thread) on both ends
• Connection Size: 1/8 in
• Thread Size: 1/8-27
• Length: 1-1/2 in
• Inner Diameter: 0.281 in
• Outer Diameter: 0.405 in
• Wall Thickness: 0.062 in
• Schedule Rating: SCH 40
• Pressure Rating: 370 psi at 100 deg F
• Temperature Range: -20 to 400 deg F
• Standards: ANSI B1.20.1; WW-N-351; MS 51846
• Typical Use: Plumbing and marine fittings
• Box Quantity: 25
• Category: Nipples and Fittings
• Weight (spec sheet): 0.030 lb
