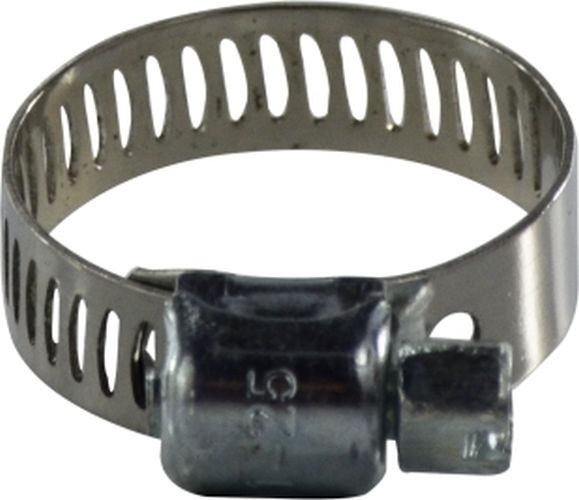

Midland Metal 3000008 Miniature Worm Gear Clamp 5/16 in Band (Size #8)

Product Description

Midland Metal 3000008 is a miniature worm gear hose clamp from the 300 Series designed for small-diameter hose connections. It features a 5/16 in band and a clamping range of 7/16 in to 1 in ID, with a 1/4 in hex slotted carbon steel screw and carbon steel housing. The band is specified as stainless steel and the clamp is intended for marine, agricultural, industrial, and automotive use.

• 5/16 in (0.3125 in) band width with minimum 7/16 in and maximum 1 in clamp I.D.
• 1/4 in hex slotted carbon steel screw and carbon steel housing; stainless steel band
• 300 Series miniature worm gear design for precise tightening on small hoses; suitable for marine, agricultural, industrial, and automotive applications

Product Highlights

Miniature worm gear clamp, 5/16 in band, 7/16 in–1 in I.D., 1/4 in screw

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 3000008

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 3000008
• Series: 300 Series
• Product Type: Miniature worm gear clamp
• Material(s): 301 stainless steel band; carbon steel screw and housing
• Band Width: 0.3125 in (5/16 in)
• Minimum Clamp I.D.: 0.4375 in (7/16 in)
• Maximum Clamp I.D.: 1.00 in (1 in)
• Screw: 1/4 in hex slotted carbon steel screw
• Bolt Size: 1/4 in
• Size Designation: #8 (300 Series, 7/16 in – 1 in ID)
• Intended Uses: Marine, agricultural, industrial, automotive
