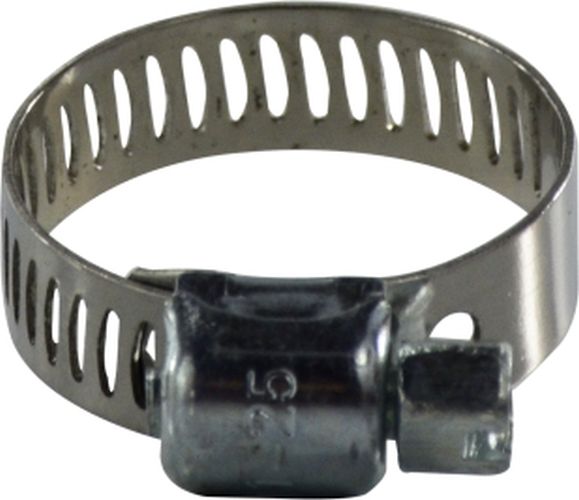

Midland Metal 3000004 hose miniature worm gear clamp 5/16 in width (7/32 to 5/8 in id)

Product Description

Midland Metal 3000004 is a 300 Series miniature worm gear hose clamp with a 5/16 in band and an I.D. range of 7/32 to 5/8 in. The clamp uses a 300-series stainless steel band combined with a carbon steel screw and carbon steel housing, and features a 1/4 in hex slotted screw. It secures small-diameter hoses and tubing in marine, agricultural, industrial, and automotive applications.

• 5/16 in (0.3125 in) band width with 7/32 to 5/8 in (0.21875 to 0.625 in) adjustable I.D.
• 300-series stainless steel band; carbon steel screw and housing; 1/4 in hex slotted screw
• 300 Series miniature worm gear design for securing small-diameter hoses in marine, agricultural, industrial and automotive uses

Product Highlights

Miniature 300 Series worm-drive clamp with 5/16 in band and 7/32–5/8 in I.D. range

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 3000004

Technical Specifications

• Brand: Midland Metal
• MPN: 3000004
• Series: 300 Series
• Size: #4 (300 Series)
• Band Width: 0.3125 in (5/16 in)
• Minimum Clamp I.D.: 0.21875 in (7/32 in)
• Maximum Clamp I.D.: 0.625 in (5/8 in)
• Band Material: 300-series stainless steel
• Screw Material: Carbon steel
• Housing Material: Carbon steel
• Screw Type: 1/4 in hex slotted carbon steel screw
• Bolt Size: 1/4 in
• Material: 300 stainless steel band; carbon steel screw and housing
• Applications: Marine, agricultural, industrial, automotive
