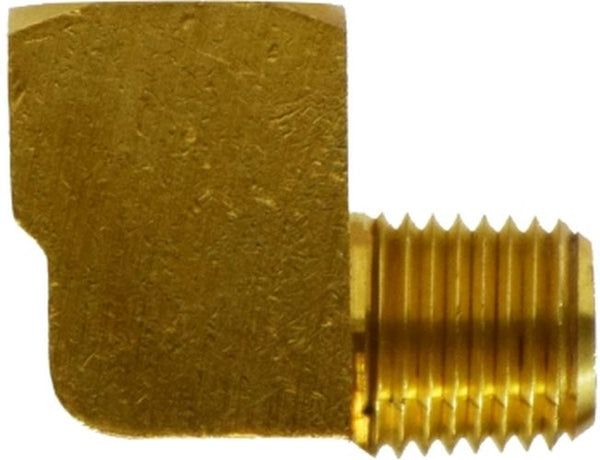

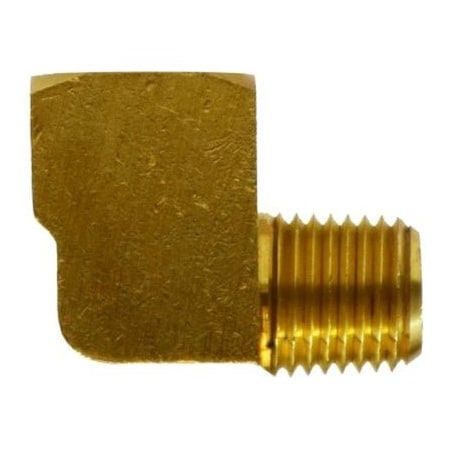

Midland Metal 28159 1/2 Mip x Fip Bs Street Elbow (90 Deg)

Product Description

Midland Metal 28159 is a brass street elbow designed to change pipe direction while connecting a male iron pipe (MIP) to a female iron pipe (FIP). The 90-degree fitting has 1/2 in connections with 1/2-14 threads and is rated to 1200 psi. It is suitable for use with aluminum, brass, bronze, copper, iron, and steel pipe and operates across a temperature range of -65 to 250 deg F.

• Brass 90-degree street elbow with 1/2 in MIP x 1/2 in FIP connections and 1/2-14 thread
• Working pressure 1200 psi and temperature range -65 to 250 deg F
• Compatible with aluminum, brass, bronze, copper, iron, and steel pipe; compact center-to-end dimensions

Product Highlights

90-degree brass street elbow; 1/2 in MIP x 1/2 in FIP; 1/2-14 thread; 1200 psi; -65 to 250 deg F

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 28159
• Country of Origin: Unknown

Technical Specifications

• Brand: Midland Metal
• MPN: 28159
• Product Type: 90 deg street elbow
• Material: Brass
• Connection 1: 1/2 in male NPT (MIP)
• Connection 2: 1/2 in female NPT (FIP)
• Connection Size: 1/2 in x 1/2 in
• Thread Size: 1/2-14
• Pressure Rating: 1200 psi
• Temperature Range: -65 to 250 deg F
• Compatible Materials: Aluminum; Brass; Bronze; Copper; Iron; Steel
• Center-to-End: 1.03 x 1.25 x 1 in
• Category: Brass Pipe Fittings
• Fitting Type: 90 deg elbow
