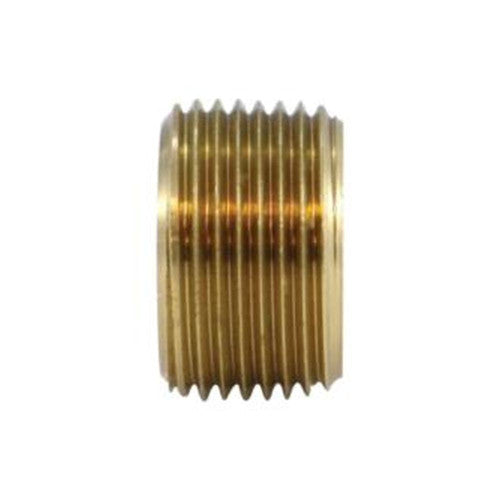

Midland Metal 28121 Face Bushing Plug 1/4 inches Male NPTF x 1/8 inches Female NPTF

Product Description

The MIDLAND METAL 28121 Face Bushing Plug is a brass fitting designed for diverse applications including grease, fuels, LP and natural gas, refrigeration, instrumentation, and hydraulic systems. This plug features a 1/4" Male NPTF and 1/8" Female NPTF configuration, ensuring compatibility with brass, bronze, copper, steel, aluminum, and iron pipes. It offers fair resistance to vibration and operates effectively within a temperature range of -65°F to +250°F, meeting ASA, ASME, and SAE standards.

• Features a 1/4" Male NPTF x 1/8" Female NPTF connection for versatile pipe integration.
• Constructed from durable brass, suitable for various media including fuels, gases, and hydraulic fluids.
• Operates reliably across a wide temperature range of -65°F to +250°F, with fair vibration resistance.

Product Highlights

Brass face bushing plug for industrial and plumbing applications, offering broad compatibility and temperature resilience.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 28121

Technical Specifications

• Shape: Plug
• Orientation: Straight
• Ends Configuration: 1/4in Male NPTF, 1/8in Female NPTF
• Approvals: ASA Standards, ASME Standards, SAE Standards, SAE J530, SAE J531
• SAE Rating: N/A
• Vibration Resistance: Fair
• Temperature Range: -65°F to +250°F (-53°C to +121°C)
• Dimension Tolerance: +/- 0.02
• Lead Free: No
• Crossover Series: 110F
• Connection Size 1: 1/4 in
• Connection Size 2: 1/8 in
• Connection Type 1: MNPTF
• Connection Type 2: FNPTF
• Fitting Type: Face Bushing
• Compatible Pipe Materials: Aluminum, Brass, Bronze, Copper, Iron, Steel
• Material: Brass
• Pressure Rating: 1200 psi
• Thread Size: 1/4-18 x 1/8-27
• Category: Brass Fittings
• Section: Pipe
