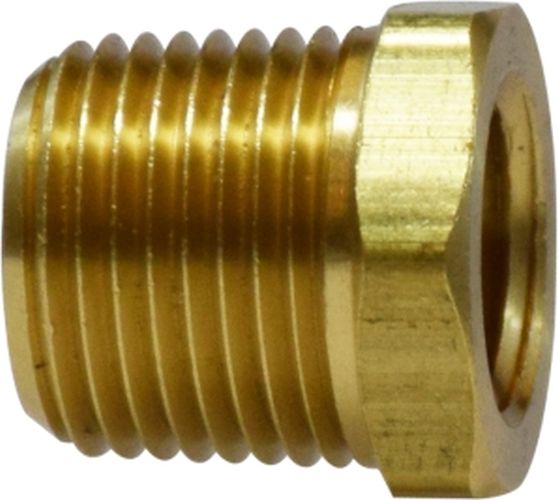

Midland Metal 28104L 3/8 x 1/4 MIP x FIP bushing (3/8-18 x 1/4-18)

Product Description

The Midland Metal 28104L is a brass bushing that adapts a 3/8 in MIP connection to a 1/4 in FIP connection for pipe and hydraulic fittings. It is a compact hex reducer designed for wrench tightening with 3/8-18 x 1/4-18 threads. The part is rated to 1200 psi and -65 to 250 deg F and is compatible with brass, bronze, copper, steel, aluminum and iron pipe.

• Brass hex bushing for reducing from 3/8 in MIP to 1/4 in FIP with 3/8-18 x 1/4-18 threads
• Rated pressure 1200 psi and temperature range -65 to 250 deg F; compatible with multiple pipe materials
• Compact hex shape for wrench tightening; hex size 0.68 in and length 0.69 in

Product Highlights

Brass reducing bushing, 3/8 MIP to 1/4 FIP, 3/8-18 x 1/4-18 threads, 1200 psi, -65 to 250 deg F

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 28104L

Technical Specifications

• Brand: Midland Metal
• MPN: 28104L
• Product type: Bushing (mechanical component)
• Fitting type: Reducer / hex bushing
• Material: Brass
• Connection size (male): 3/8 in (MIP)
• Connection size (female): 1/4 in (FIP)
• Connection type (male): MIP
• Connection type (female): FIP
• Thread size: 3/8-18 x 1/4-18
• Pressure rating: 1200 psi
• Temperature rating: -65 to 250 deg F
• Hex size: 0.68 in (across flats)
• Length: 0.69 in
• Compatible materials: Brass; Bronze; Copper; Steel; Aluminum; Iron
• Shape: Reducer
• Number of items: 1
• Category: Brass fittings
• Section: Pipe
