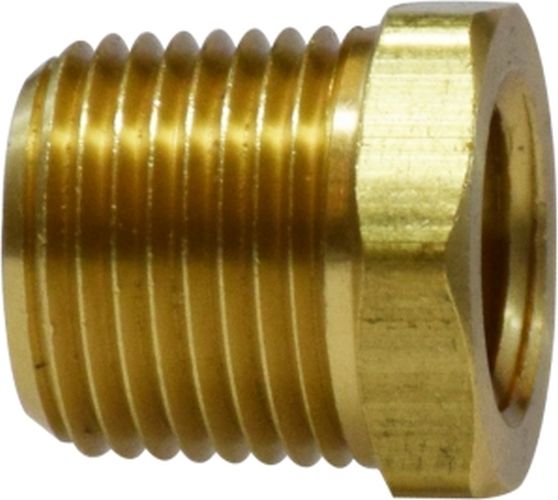

Midland Metal 28102L Hex Bushing 1/4 x 1/8 (MIP x FIP)

Product Description

The Midland Metal 28102L is a brass hex bushing reducer that adapts a 1/4 in male NPT (1/4-18) to a 1/8 in female NPT (1/8-27). The fitting features a hex exterior for tightening and is compatible with brass, bronze, copper, steel, aluminum, and iron pipe. It is rated to 1200 psi and is usable across a temperature range of -65 to 250 F, with compact dimensions for confined piping connections.

• Brass construction with hex exterior for tightening; compact reducer design
• Connects 1/4-18 male NPT to 1/8-27 female NPT (MIP to FIP)
• Pressure rated 1200 psi; temperature range -65 to 250 F; hex size 0.56 in, length 0.62 in

Product Highlights

Brass hex bushing reducer, 1/4 in MNPT to 1/8 in FNPT, 1200 psi, -65 to 250 F

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 28102L

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 28102L
• Material: Brass
• Fitting Type: Bushing
• Connection Size 1: 1/4 in
• Connection Size 2: 1/8 in
• Connection Type 1: MNPT
• Connection Type 2: FNPT
• Thread Size: 1/4-18 x 1/8-27
• Pressure Rating: 1200 psi
• Temperature Rating: -65 to 250 deg F
• Hex Size: 0.56 in
• Length: 0.62 in
• Compatible With: Brass; Bronze; Copper; Steel; Aluminum; Iron
• Section: Pipe
• Shape: Reducer
• Category: Brass Fittings
