Midland Metal 28089 1 Sq Hd Barstock Plug 1 Pack

Product Description

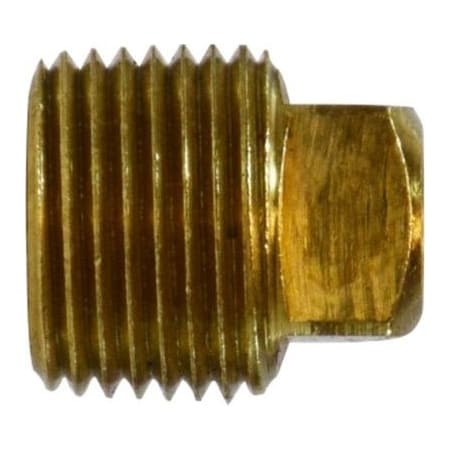

Midland Metal 28089 is a brass 1 square heavy-duty barstock square head plug designed for sealing threaded pipe ports. The plug features a 1 in FNPT connection with 1-11-1/2 thread, a 1.24 in length and a 0.81 in hex for installation. It is rated to 1000 psi and specified for use with brass, bronze, copper, steel, aluminum, and iron pipe over a -65 to 250 F temperature range.

• Material: Brass barstock construction; square head design for wrench installation
• Connection: 1 in FNPT with 1-11-1/2 thread, length 1.24 in, hex size 0.81 in
• Ratings: Pressure 1000 psi; temperature range -65 to 250 F; compatible with multiple pipe materials

Product Highlights

Brass square head barstock plug, 1 in FNPT thread, 1.24 in length, 1000 psi rating, -65 to 250 F temperature range

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 28089
• Country of Origin: Unknown

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 28089
• Type: Square head plug
• Construction: Barstock
• Material: Brass
• Size: 1 Sq Hd
• Connection Size: 1 in
• Connection Type: FNPT
• Thread: 1-11-1/2
• Length: 1.24 in
• Hex Size: 0.81 in
• Pressure Rating: 1000 psi
• Temperature Range: -65 to 250 F
• Compatible Materials: Brass, Bronze, Copper, Steel, Aluminum, Iron
• Weight: 0.06 lbs
• Package Quantity: 1
• Shape: Square head
