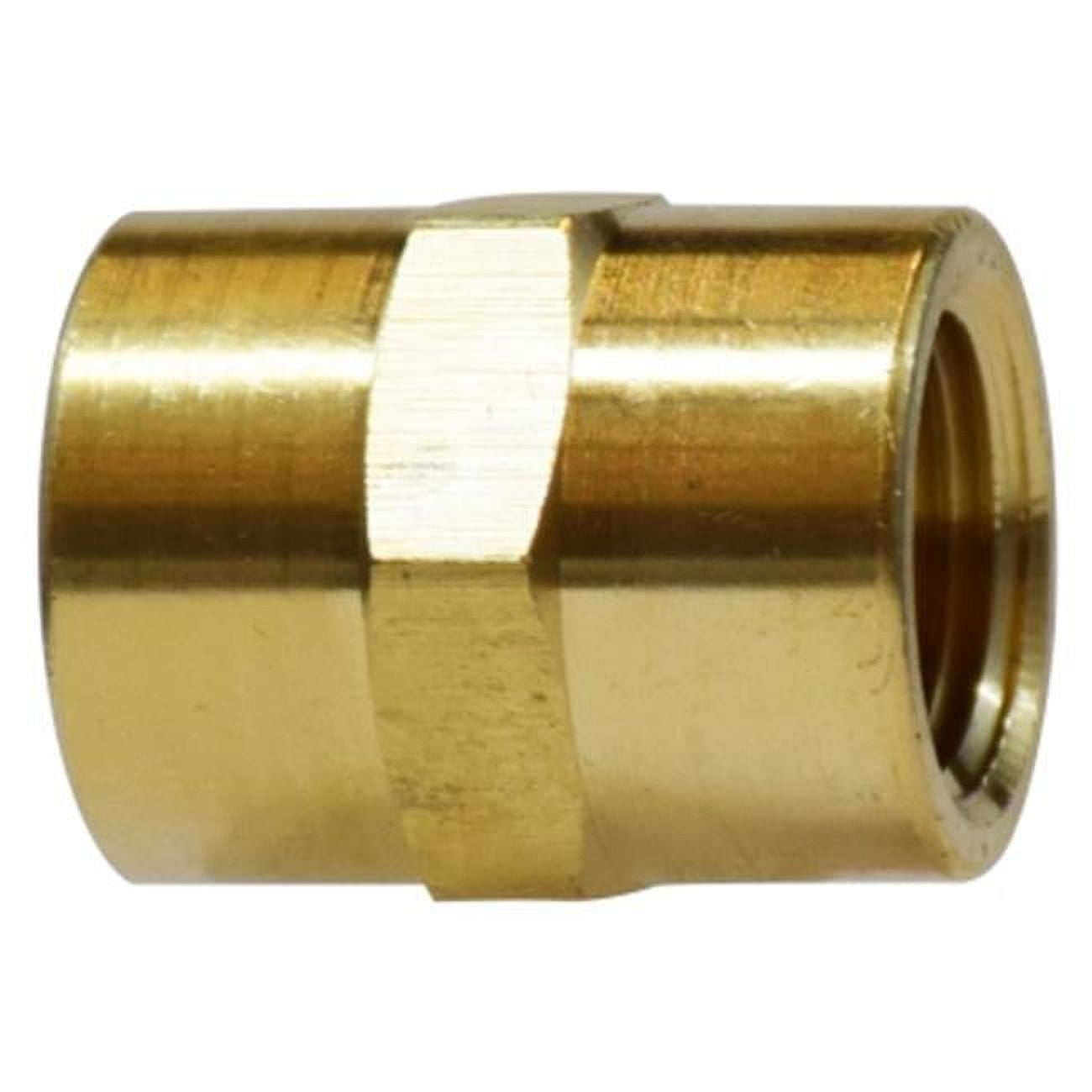

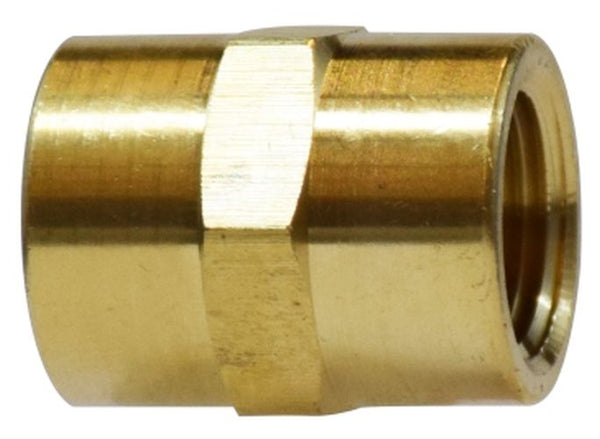

Midland Metal 28062L Brass 3/4 Fip Lp Bs Coupling Pack of 10 28-062L

Product Description

Midland Metal 28062L is a brass 3/4-inch female pipe (FIP / FNPT) low-pressure coupling supplied as a pack of 10. The coupling features 3/4-14 threads, a 1.19 inch overall length and a 1-1/4 inch hex for wrenching. It is rated to 1000 psi and specified for temperatures from -65 to 250 deg F, and is suitable for use with aluminum, brass, bronze, copper, iron and steel pipe.

• Brass construction with 3/4 in female NPT (FNPT/FIP) threads on both ends and 3/4-14 thread size
• Rated working pressure 1000 psi and temperature range -65 to 250 deg F; compatible with common pipe materials
• Dimensions: 1.19 in length and 1-1/4 in hex for tightening; supplied as a pack of 10

Product Highlights

3/4 in brass FNPT/FIP coupling, 3/4-14 thread, 1.19 in length, 1-1/4 in hex, 1000 psi, -65 to 250°F, compatible with aluminum/brass/bronze/copper/iron/steel, pack of 10

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 28062L

Technical Specifications

• Brand: Midland Metal
• MPN: 28062L
• Product Name: Brass 3/4 FIP LP BS Coupling
• Product Type: Coupling
• Material: Brass
• Connection Size: 3/4 in (0.75 in)
• Connection Type: Female NPT (FNPT / FIP)
• Thread Size: 3/4-14
• Length: 1.19 in
• Hex Size: 1-1/4 in
• Working Pressure: 1000 psi
• Temperature Range: -65 to 250 deg F
• Compatible With: Aluminum, Brass, Bronze, Copper, Iron, Steel pipe
• Package Quantity: 10
• Weight: 0.36 lb
• Also Known As: 28-062L; 06103-12; 103-12; 103-E; 103A-E; 103E; 23300X12; 3300x12; 50785K95; 99-12; E23300-12
