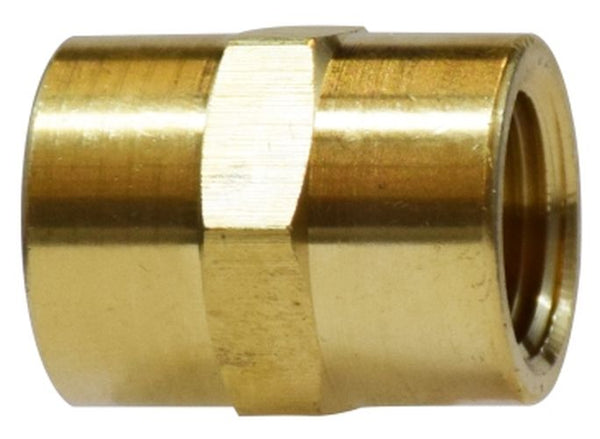

Midland Metal 28058L 1/8 FIP LP BS Coupling (1/8 in)

Product Description

The Midland Metal 28058L is a brass 1/8 FIP LP BS coupling intended for fluid and pneumatic connections. It uses 1/8-27 threads and measures 3/4 in in length with a 1/2 in hex for tightening. The coupling is rated to 1200 psi and specified for -65 to 250 deg F, and is compatible with aluminum, brass, bronze, copper, iron and steel pipe. It is made in the U.S.A.

• Brass construction with 1/8 FIP (female iron pipe) British Standard connections and 1/8-27 thread
• Rated to 1200 psi; temperature range -65 to 250 deg F; compatible with aluminum, brass, bronze, copper, iron and steel pipe
• Compact dimensions: 3/4 in length and 1/2 in hex for tightening; made in U.S.A.

Product Highlights

Brass 1/8 FIP coupling with 1/8-27 thread, 1200 psi rating, -65 to 250 deg F

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 28058L
• Country of Origin: United States

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 28058L
• Product Type: Coupling
• Material: Brass
• Connection Size 1: 1/8 in
• Connection Type 1: FIP (Female Iron Pipe) — listed as British Standard (BS) in description
• Connection Size 2: 1/8 in
• Connection Type 2: FIP (Female Iron Pipe) — listed as British Standard (BS) in description
• Thread Size: 1/8-27
• Length: 3/4 in
• Hex Size: 1/2 in
• Pressure Rating: 1200 psi
• Temperature Range: -65 to 250 deg F
• Compatible With: Aluminum; Brass; Bronze; Copper; Iron; Steel pipe
• Weight: 0.10 lb
• Country of Origin: Made in U.S.A.
• EAN / GTIN: 7363424121533
