Midland Metal 28028 Hoses, Tubing and Fittings 34 FIP BS Tee

Product Description

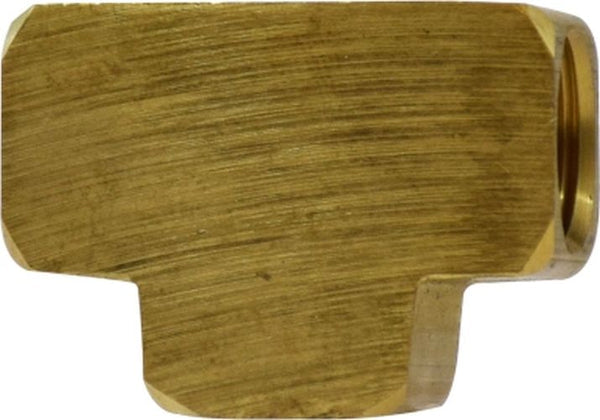

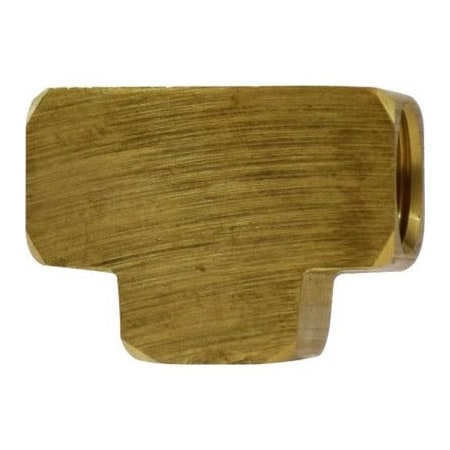

Midland Metal 28028 is a tee fitting for hoses and tubing featuring 3/4 FIP British Standard female iron pipe threads. Constructed as a brass union tee with three 3/4 in female connections (thread size 3/4-14), it is rated to 1000 psi and a temperature range of -65 to 250°F. Center-to-end dimensions are approximately 1.16 x 1.25 in and weight is about 0.639 lb; suitable for plumbing and piping applications.

• Brass union tee with 3/4 FIP (female iron pipe) British Standard threads
• Three 3/4 in female connections, thread size 3/4-14; center-to-end approx. 1.16 x 1.25 in
• Pressure rating 1000 psi; temperature range -65 to 250°F; compatible with brass, bronze, copper, steel, aluminum, iron pipe

Product Highlights

Brass union tee, 3/4 FIP BS female threads, 3/4 in ports, 1000 psi, -65 to 250°F

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 28028
• Country of Origin: Unknown

Technical Specifications

• Brand: Midland Metal
• MPN: 28028
• Category: Brass pipe fittings
• Fitting Type: Union tee (Tee)
• Material: Brass
• Connection Type: Female iron pipe (FIP) British Standard
• Connection Size: 3/4 in (all three ports)
• Thread Size: 3/4-14
• Pressure Rating: 1000 psi
• Temperature Rating: -65 to 250 °F
• For Use With: Brass; Bronze; Copper; Steel; Aluminum; Iron pipe
• Center-to-End Dimensions: Approximately 1.16 x 1.25 in (center-to-end)
• Weight: 0.639 lb
• Shape: Tee
