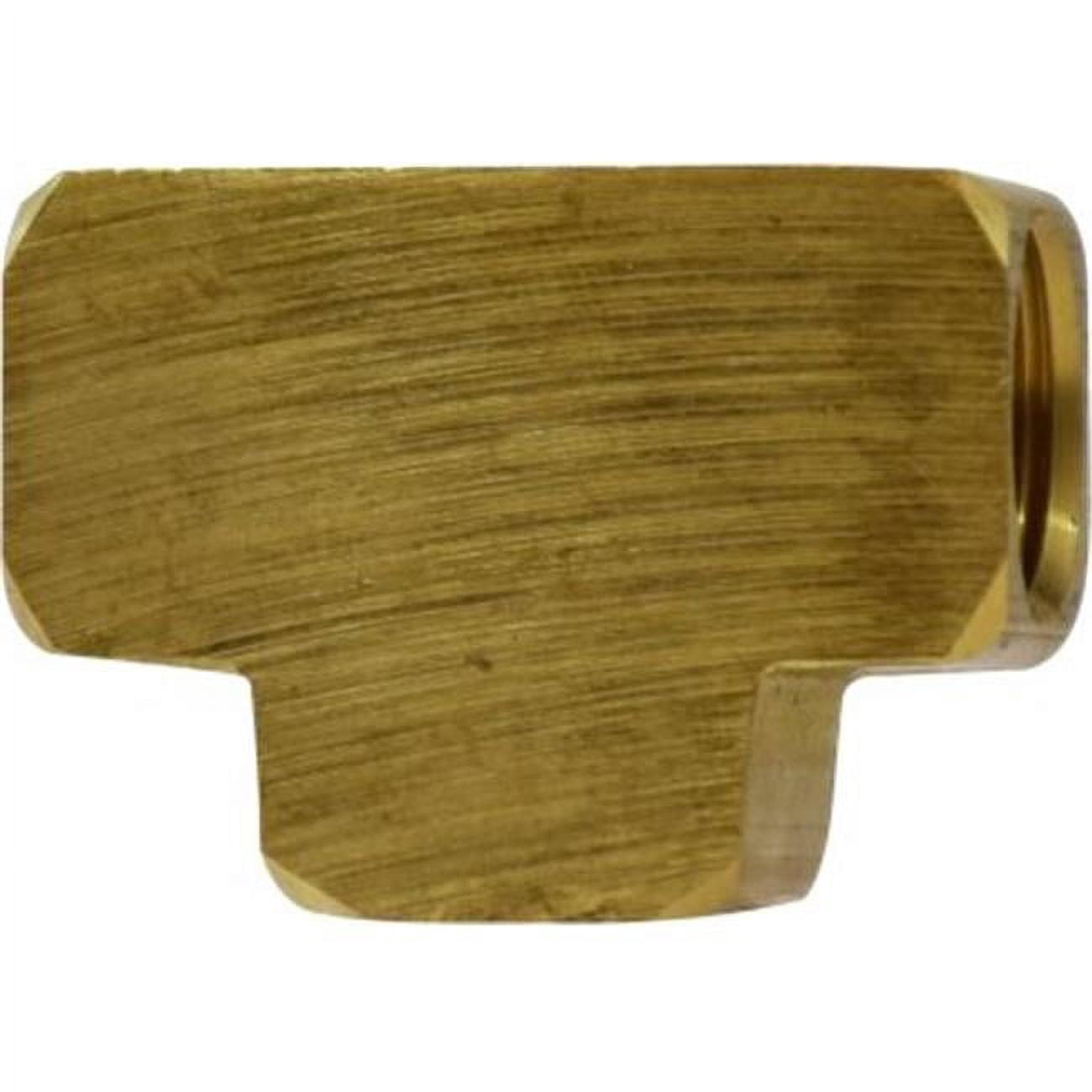

Midland Metal 28026 Union Tee 3/8 in (0.37 FIP)

Product Description

The Midland Metal 28026 is a brass union tee designed for fluid and piping systems, featuring 0.37 in FIP connections on all three ports. It uses 3/8-18 threads, is rated to 1200 psi, and supports temperatures from -65 to 250 °F. Center-to-end dimensions are approximately 0.84 x 0.81 in and the fitting is compatible with brass, bronze, copper, steel, aluminum, and iron pipe.

• Brass union tee construction with three 0.37 in FIP ports
• 3/8-18 threads, rated working pressure 1200 psi
• Temperature range -65 to 250 °F; center-to-end approx. 0.84 x 0.81 in

Product Highlights

Brass 3/8 in union tee, 3/8-18 thread, 1200 psi, -65 to 250 °F

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 28026

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 28026
• Product Type: Union tee
• Material: Brass
• Connection Size: 0.37 in (3/8 in)
• Connection Type: FIP (female iron pipe)
• Ports: 3 (tee)
• Thread: 3/8-18
• Pressure Rating: 1200 psi
• Temperature Range: -65 to 250 °F
• Center-to-End Dimensions: Approximately 0.84 x 0.81 in
• Compatible Materials: Brass, bronze, copper, steel, aluminum, iron
