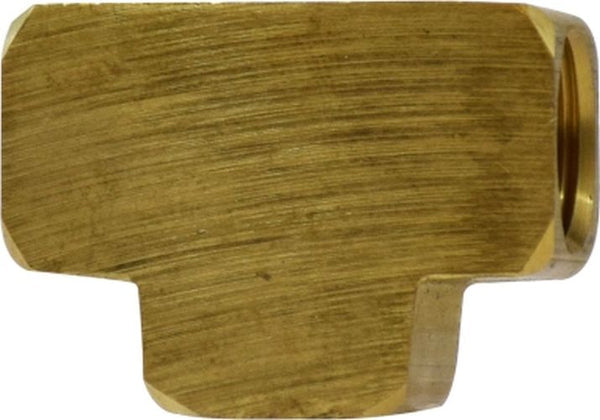

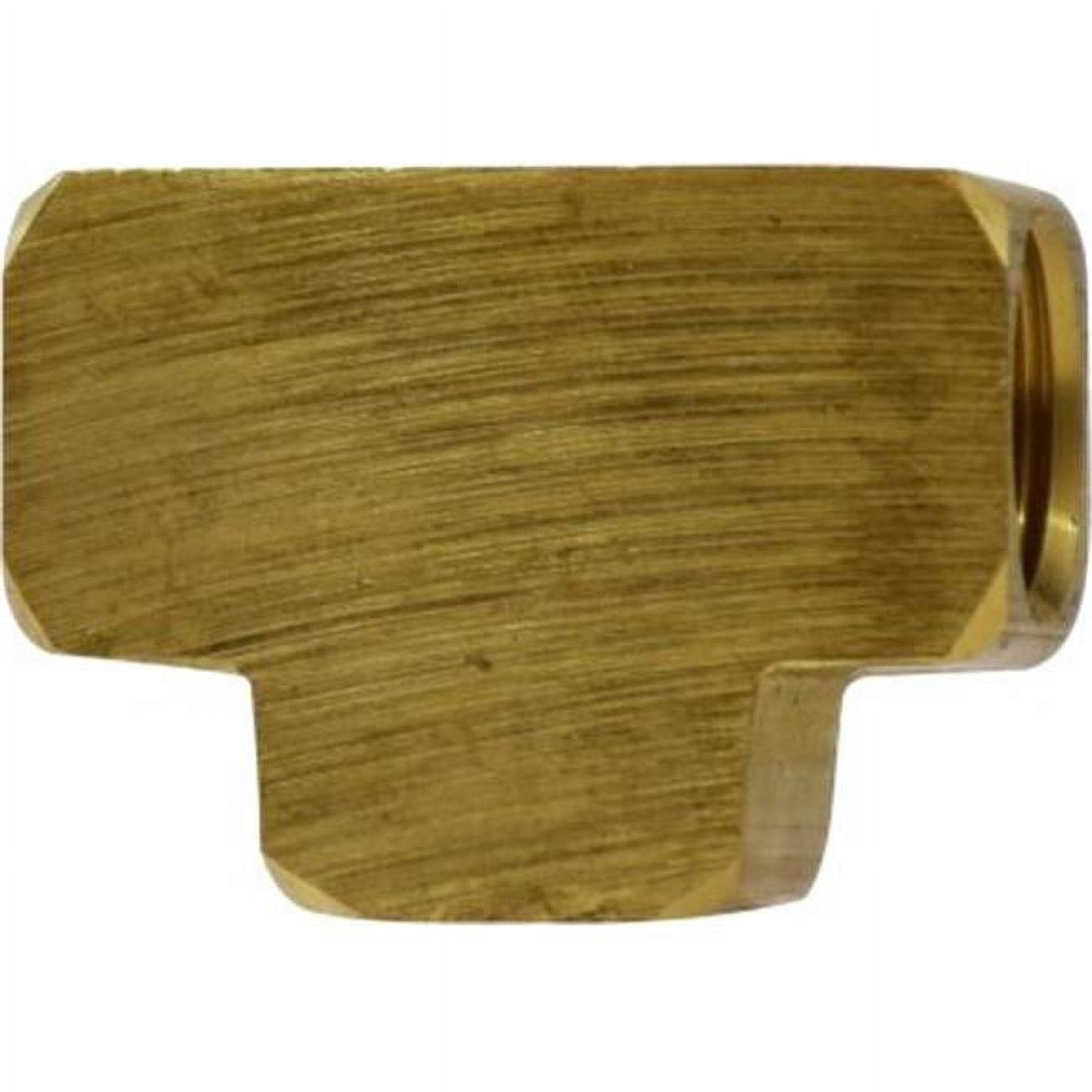

Midland Metal 28025 Union Tee Barstock 1/4 inch FNPT x 1/4 inch FNPT x 1/4 inch FNPT

Product Description

Midland Metal 28025 is a brass union tee barstock fitting that provides a three-way connection for hose and pipe systems. It features three 1/4 inch female NPT (FNPT) ports with 1/4-18 threads, a working pressure rating of 1200 psi, and a temperature range of -65 to 250 °F. Typical applications include fluid and gas plumbing, hydraulic equipment, and connections with metal piping.

• Brass construction with union tee barstock design for three-way connections
• Three 1/4 inch female NPT (FNPT) ports, thread size 1/4-18
• Rated to 1200 psi; temperature range -65 to 250 °F; compatible with brass, bronze, copper, steel, aluminum, and iron pipe

Product Highlights

Brass union tee with three 1/4 in FNPT female ports, 1/4-18 thread, 1200 psi pressure rating, temperature range -65 to 250 °F, compact center-to-end dimensions.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 28025
• Country of Origin: Import

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 28025
• Product Name: Union Tee Barstock
• Product Type: Hose/Pipe Fitting (Union Tee)
• Material: Brass
• Connection Type: Female NPT (FNPT) on all ends
• Connection Size: 1/4 in (all three connections)
• Thread Size: 1/4-18
• Pressure Rating: 1200 psi
• Temperature Rating: -65 to 250 °F
• Compatible With: Brass, bronze, copper, steel, aluminum, iron pipe
• Center-to-End Dimensions: 0.78 x 0.68 in
• Weight: 0.16 lb
• Nominal Size: 1/4 in
• End Style: FNPT
• Fitting Type: Tee
