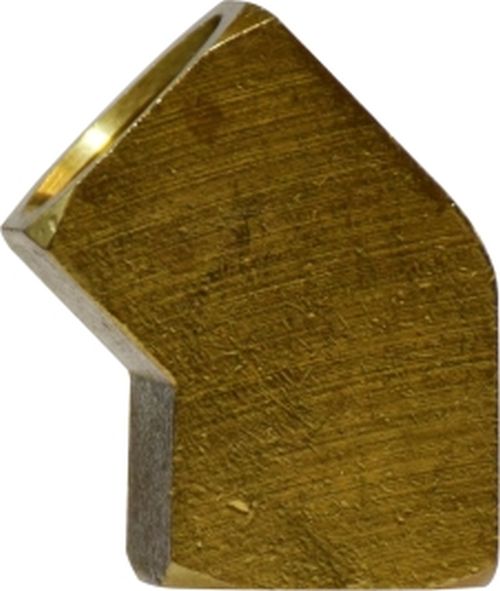

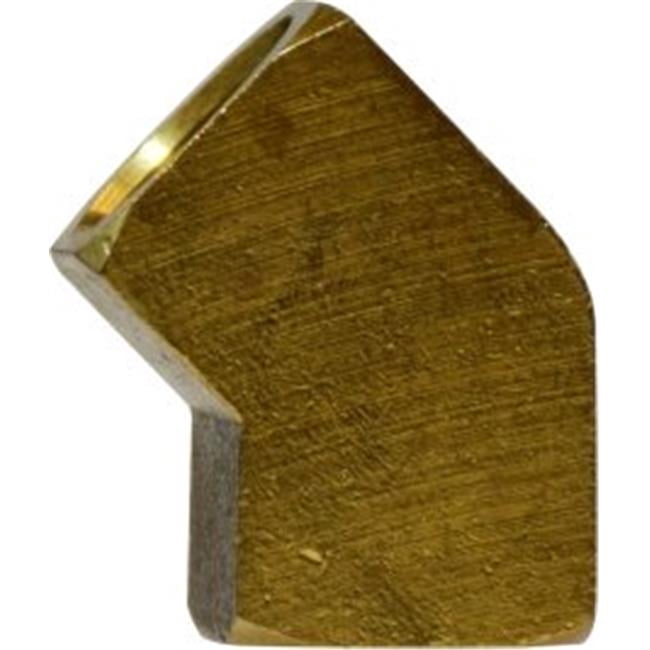

Midland Metal 28019 45 Deg Female Elbow 1/4 FIP x 1/4 FIP (45 Deg)

Product Description

The Midland Metal 28019 is a 45-degree female elbow fitting manufactured from brass with 1/4 in female iron pipe (FIP) threads on both ends. It provides a threaded 45-degree change of direction for plumbing, HVAC, pneumatic, and hydraulic lines and is sized for 1/4-18 threads. The fitting is rated for 1200 psi and a temperature range of -65 to 250 deg F.

• Brass 45-degree female elbow with 1/4 in FIP x 1/4 in FIP connections and 1/4-18 thread
• Pressure rating 1200 psi and temperature range -65 to 250 deg F
• Compatible with brass, bronze, copper, steel, aluminum and iron pipe; female x female configuration

Product Highlights

45-degree brass female elbow, 1/4 in FIP x FIP, 1/4-18 thread, 1200 psi, -65 to 250°F

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 28019

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 28019
• Type: 45 Deg Female Elbow
• Angle: 45 deg
• Material: Brass
• Connection Type: FIP x FIP
• Connection Size: 1/4 in x 1/4 in
• Thread Size: 1/4-18
• Gender: Female x Female
• Pressure Rating: 1200 psi
• Temperature Range: -65 to 250 deg F
• Compatible Materials: Brass; Bronze; Copper; Steel; Aluminum; Iron
• Category: Brass fittings
• Standards: BS standard fittings
