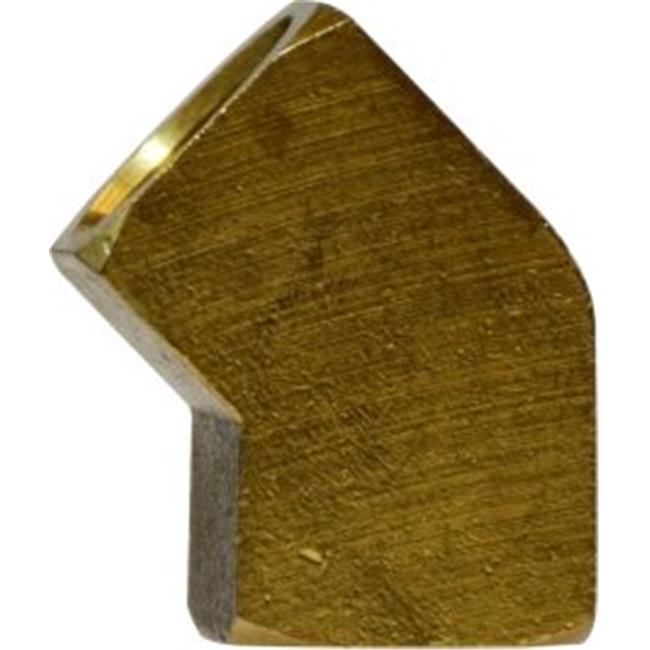

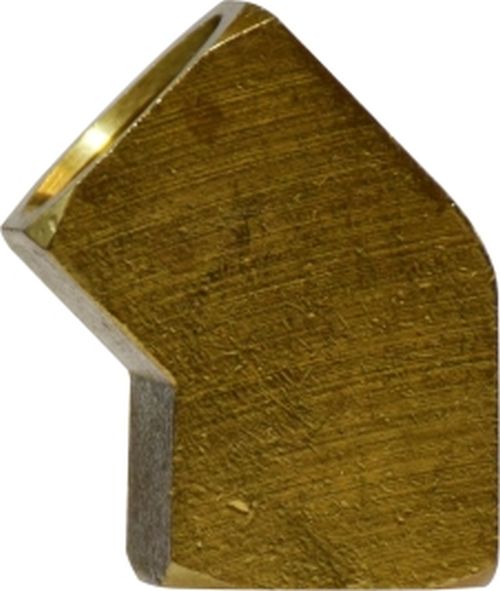

Midland Metal 28018 45 Deg Female Elbow (1/8 FIP / 45 Deg)

Product Description

Midland Metal 28018 is a brass 45-degree female elbow fitting with 1/8 in female NPTF (FIP) threads on both ends, used to change flow direction by 45 degrees in piping systems. The fitting is rated for 1200 psi working pressure and a temperature range of -65 to 250 deg F. Typical applications include plumbing, HVAC, irrigation, and general fluid-handling systems.

• Brass construction; 45-degree female elbow configuration for direction change.
• 1/8 in female NPTF (FIP) threaded connections on both ends for pipe, tube, or hose fittings.
• 1200 psi working pressure; temperature range -65 to 250 deg F; weight 0.058 lb.

Product Highlights

Brass 45-degree female elbow, 1/8 in female NPTF (FIP), 1200 psi, -65 to 250 deg F.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 28018

Technical Specifications

• MPN: 28018
• Brand: Midland Metal
• Material: Brass
• Fitting Type: 45 deg female elbow
• Angle: 45 deg
• Connection Size: 1/8 in
• Connection Type: Female NPTF (FNPTF)
• Pressure Rating: 1200 psi
• Temperature Rating: -65 to 250 deg F
• Weight: 0.058 lb
• Category: Brass fittings
