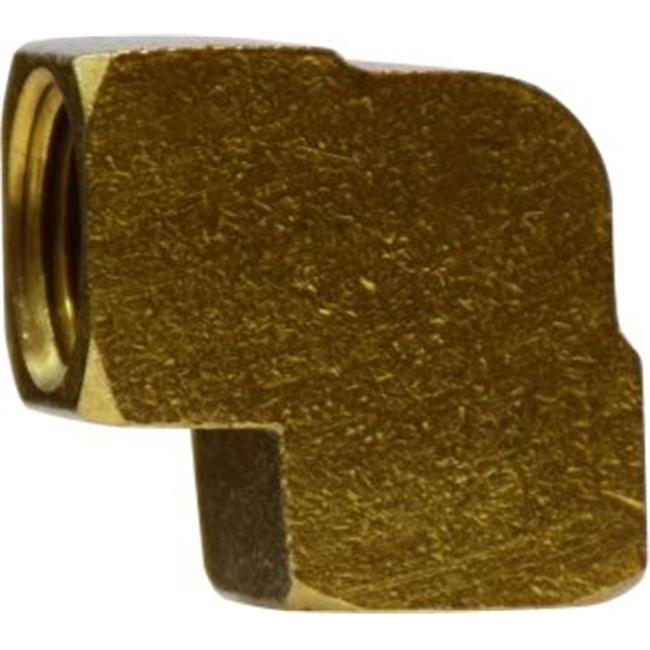

Midland Metal 28003 Brass Pipe Elbow (3/8 in, 90 degree)

Product Description

Midland Metal 28003 is a 90 degree brass pipe elbow with 3/8 in female iron pipe (FIP) threads on both ends, used to change direction in piping runs. The fitting is constructed of brass and is compatible with brass, bronze, copper, steel, aluminum and iron pipe for water and irrigation applications. It is rated to 1200 psi and has a temperature range of -65 to 250 F.

• 90 degree elbow with 3/8 in female iron pipe (FIP) threads on both ends
• Brass construction; compatible with brass, bronze, copper, steel, aluminum and iron pipe
• Pressure rating 1200 psi; temperature range -65 to 250 F; item number 2095868

Product Highlights

90 degree brass elbow, 3/8 in FIP x FIP, 1200 psi pressure rating, -65 to 250 F temperature range

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 28003
• Country of Origin: Imported

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 28003
• Item Number: 2095868
• Material: Brass
• Angle: 90 degree
• Size: 3/8 in
• Thread Type: Female iron pipe (FIP)
• Connection Type: FIP threads on both ends
• Thread Size: 3/8-18
• Pressure Rating: 1200 psi
• Temperature Rating: -65 to 250 F
• Weight: 0.160 lb
• Category: Pipe elbows / Brass fittings
• For Use With: Brass, bronze, copper, steel, aluminum, and iron pipe
• Country of Origin: Imported
