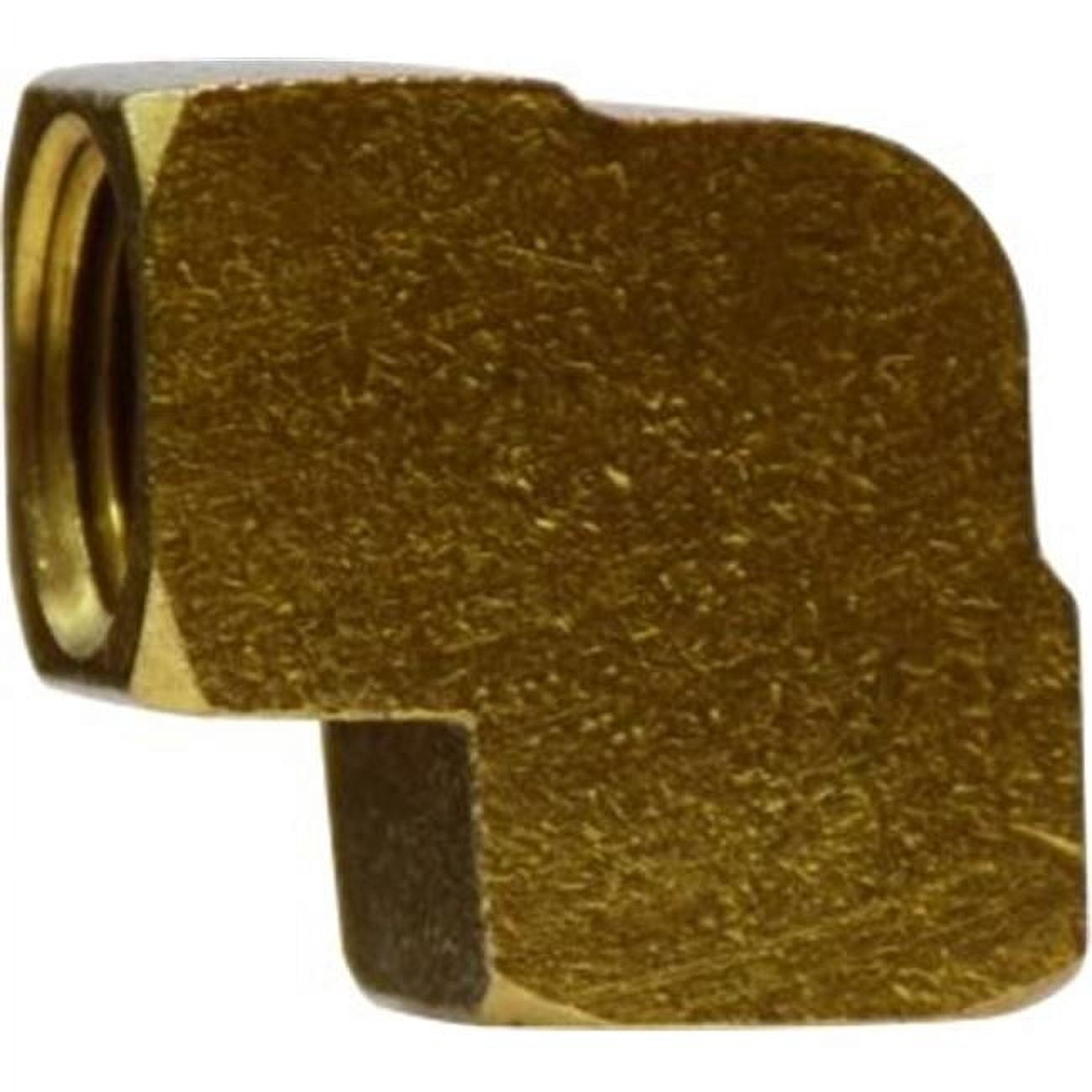

Midland Metal 28002 90 Deg Elbow (1/4 In Fnpt x 1/4 In Fnpt)

Product Description

Midland Metal 28002 is a brass 90-degree female elbow fitting with 1/4 in FNPT x 1/4 in FNPT connections and 1/4-18 threads. It provides a directional change for fluid or gas lines with a pressure rating of 1200 psi and an operating temperature range of -65 to 250 deg F. The fitting is compatible with brass, bronze, copper, steel, aluminum, and iron pipe for plumbing, pneumatic, and hydraulic applications.

• Brass 90-degree female elbow with 1/4 in FNPT x 1/4 in FNPT connections and 1/4-18 threads
• Pressure rated to 1200 psi and temperature rated from -65 to 250 deg F
• Compatible with brass, bronze, copper, steel, aluminum, and iron pipe

Product Highlights

Brass 90-degree FNPT elbow; 1/4-18 thread; 1200 psi; -65 to 250 deg F

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 28002

Technical Specifications

• Brand: Midland Metal
• MPN: 28002
• Product Type: 90 Deg Female Elbow
• Material: Brass
• Connection Size 1: 1/4 in
• Connection Type 1: FNPT
• Connection Size 2: 1/4 in
• Connection Type 2: FNPT
• Thread Size: 1/4-18
• Pressure Rating: 1200 psi
• Temperature Range: -65 to 250 deg F
• Compatible With: Brass, Bronze, Copper, Steel, Aluminum, Iron
• Weight: 0.13 lb
