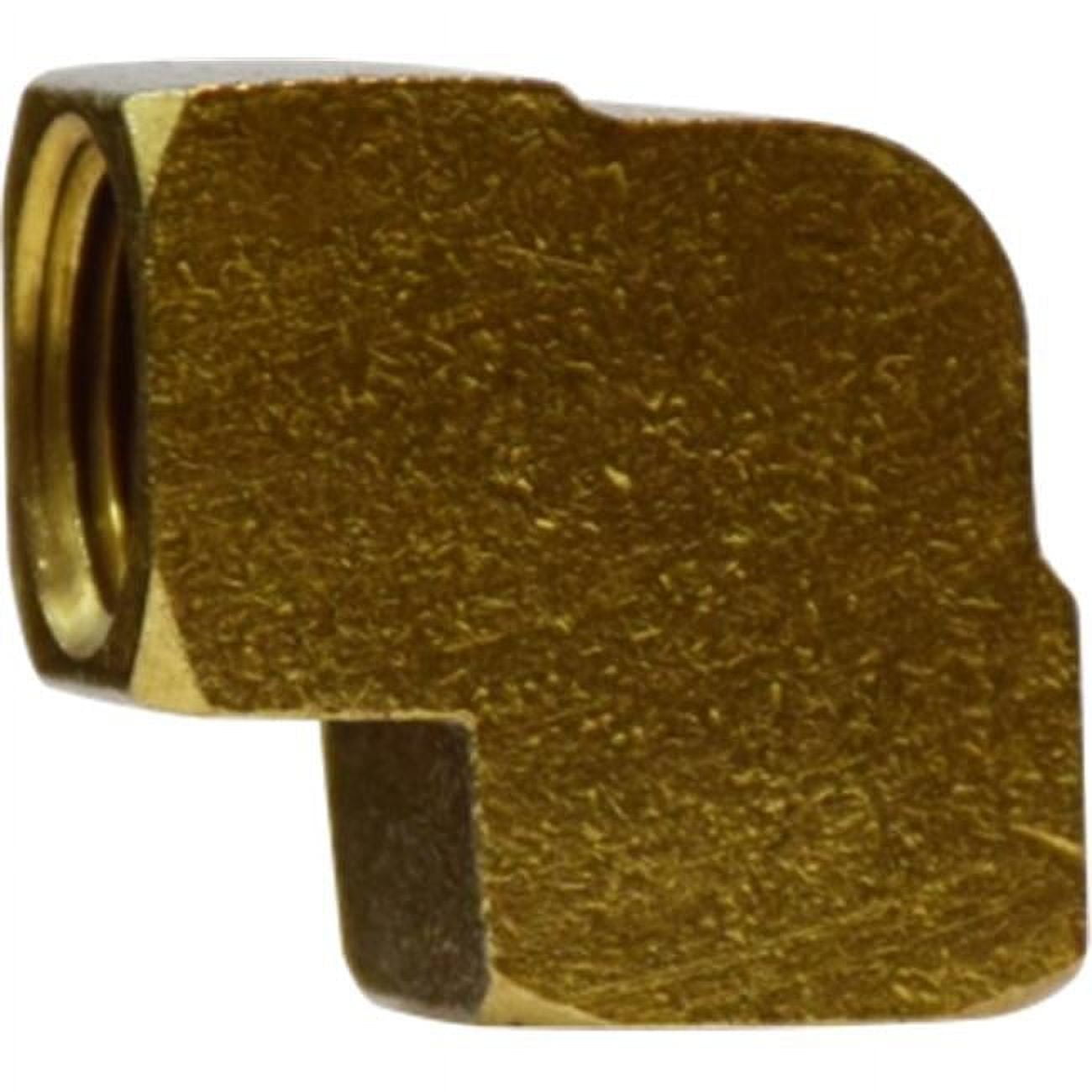

Midland Metal 28001 90 Degree Female Elbow (1/8 in x 1/8 in, 90 degree) 28-001

Product Description

The Midland Metal 28001 is a brass 90 degree female elbow with 1/8 in FNPT x 1/8 in FNPT connections (1/8-27 thread) for fluid handling and plumbing systems. It is constructed of brass and rated to 1200 psi with an operating temperature range of -65 to 250 deg F. The fitting interfaces with brass, bronze, copper, steel, aluminum, and iron pipe for directional changes in piping.

• Brass 90 degree elbow with 1/8 in FNPT x 1/8 in FNPT female threads (1/8-27).
• Pressure rating 1200 psi; temperature range -65 to 250 deg F.
• Compatible with brass, bronze, copper, steel, aluminum, and iron pipe; used in plumbing and hydraulic fluid systems.

Product Highlights

Brass 90 degree FNPT female elbow; 1/8 in connections (1/8-27); 1200 psi; -65 to 250 deg F.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 28001

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 28001
• Alternate Part Number: 28-001
• Model Number: 90 degree Female Elbow
• Type: 90 degree female elbow
• Material: Brass
• Material Construction: Brass
• Connection Type 1: Female NPT (FNPT)
• Connection Size 1: 1/8 in (1/8-27)
• Connection Type 2: Female NPT (FNPT)
• Connection Size 2: 1/8 in (1/8-27)
• Thread: 1/8-27
• Pressure Rating: 1200 psi
• Temperature Range: -65 to 250 deg F
• Compatible With: Brass; Bronze; Copper; Steel; Aluminum; Iron pipe
• Shape: 90 degree elbow
• Category: Brass Fittings
• Weight: 0.090 lb
