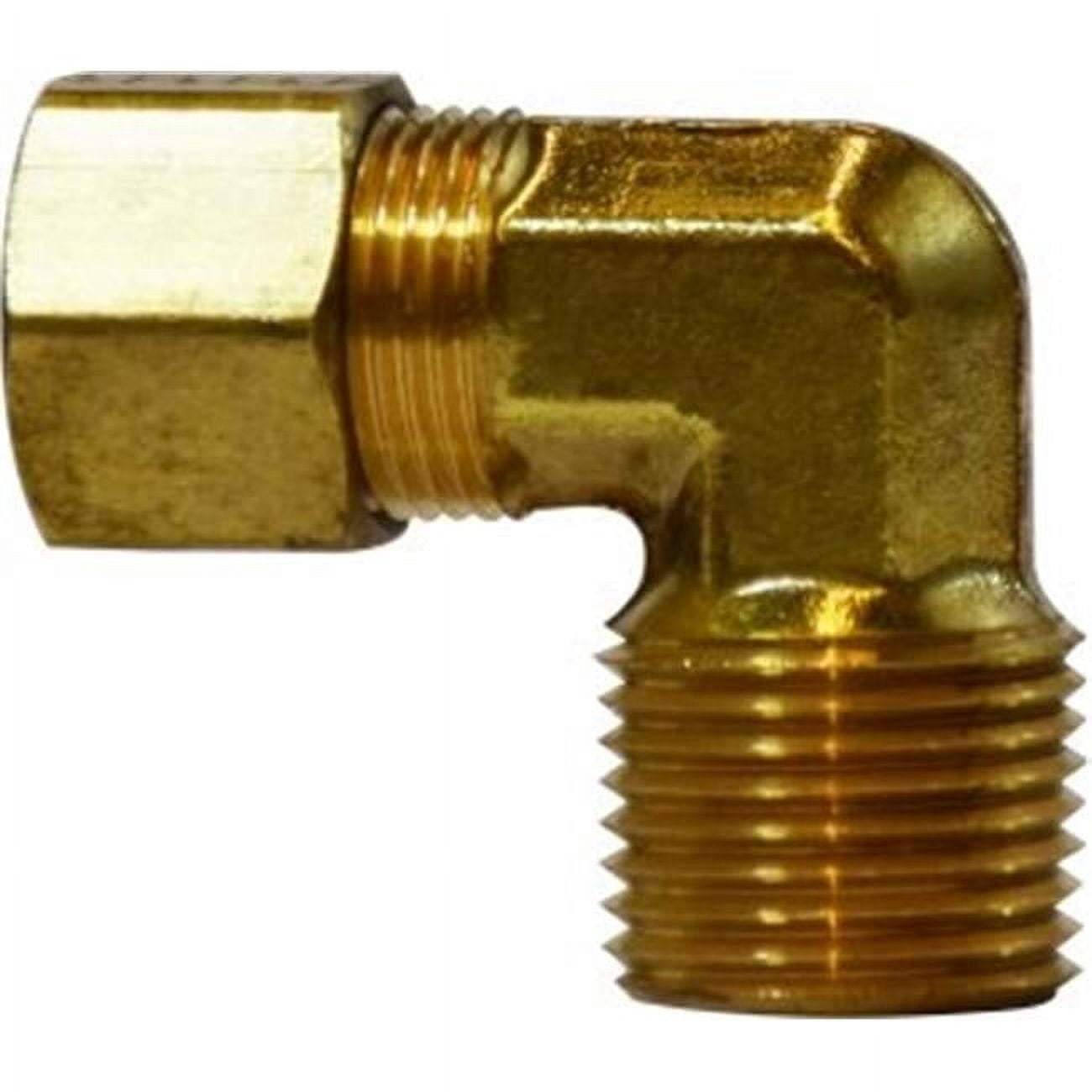

Midland Metal 18234 Brass 3/8 x 3/8 Comp x MIP Elbow (Pack of 10)

Product Description

The Midland Metal 18234 is a brass 90-degree compression-to-MIP elbow fitting sized 3/8 x 3/8, supplied as a pack of 10. It converts a 3/8 inch compression (tube) connection to a 3/8 inch male iron pipe (MIP/MNPTF) threaded connection for plumbing and fluid conveyance. The fitting is forged brass, compatible with copper, aluminum and thermoplastic tubing, with a 9/16-24 x 3/8-18 thread and a 200 psi rating at -65 to 250 °F.

• 3/8 in compression to 3/8 in male MIP/MNPTF connection; 90-degree elbow configuration
• Forged brass construction (material grade noted as CA377 in some listings) with 9/16-24 x 3/8-18 thread
• Rated to 200 psi and temperature range -65 to 250 °F; compatible with copper, aluminum and thermoplastic tubing

Product Highlights

3/8 in compression x 3/8 in male MIP elbow; forged brass; 9/16-24 x 3/8-18 thread; 200 psi; -65 to 250 °F; pack of 10.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18234

Technical Specifications

• Brand: Midland Metal
• MPN: 18234
• Material: Brass
• Material Grade: CA377 (listed in some sources)
• Fitting Type: Compression x MIP elbow
• Shape: 90 degree elbow
• Size: 3/8 x 3/8 inch
• Connection 1: 3/8 in compression (tube OD)
• Connection 2: 3/8 in male MIP / MNPTF
• Thread Size: 9/16-24 x 3/8-18
• Pressure Rating: 200 psi
• Temperature Range: -65 to 250 °F
• Body Size: 0.46 in
• Center to End: 0.81 x 0.94 in
• Weight: 0.100 lb
• For Use With: Copper, aluminum and thermoplastic tubing
• Quantity: Pack of 10
• Product Type: Hose/Pipe fitting
