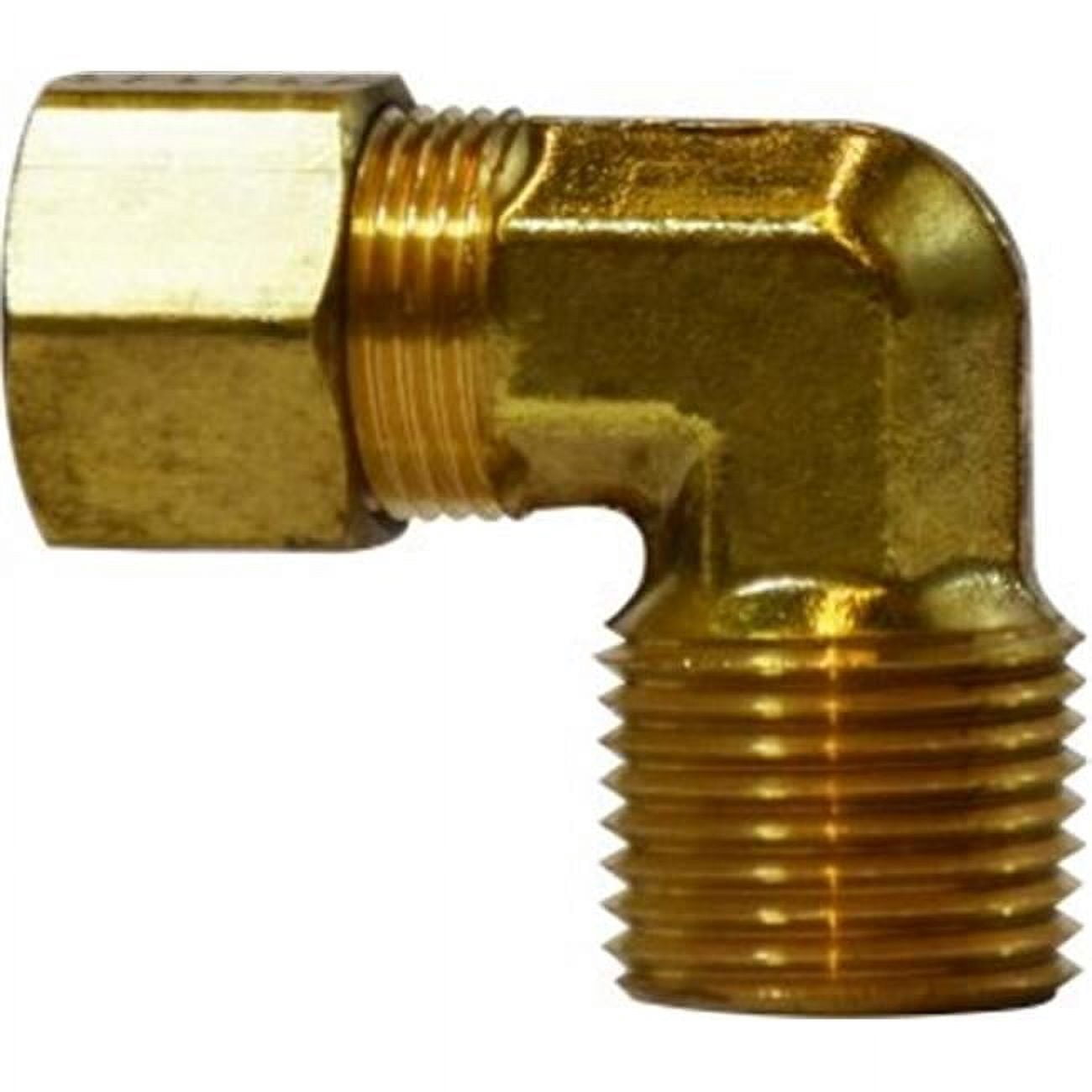

Midland Metal 18232 Brass 3/8 x 1/8 Comp x MIP Elbow (Pack of 10)

Product Description

Midland Metal 18232 is a brass 90 degree elbow fitting with a 3/8 inch compression connection and a 1/8 inch male iron pipe (MIP) thread. Supplied as a pack of 10, the fitting joins tubing to threaded pipe in plumbing and hydraulic systems. It features forged brass construction, a compact 0.39 inch body size, thread size 9/16-24 x 1/8-27, 200 psi rating and -65 to 250 F temperature range.

• 3/8 in compression to 1/8 in MIP (male iron pipe) 90 degree elbow
• Forged brass construction; thread size 9/16-24 x 1/8-27; rated 200 psi, -65 to 250 F
• Compatible with copper, aluminum and thermoplastic tubing; compact body size 0.39 in; pack of 10

Product Highlights

Brass 90 degree compression-to-MIP elbow; 3/8 in x 1/8 in; 200 psi; -65 to 250 F; pack of 10

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18232

Technical Specifications

• Brand: Midland Metal
• MPN: 18232
• Manufacturer: Midland Metal
• Material: Brass
• Fitting Type: 90 degree elbow
• Connection 1: 3/8 in compression (tube OD)
• Connection 2: 1/8 in MIP (male iron pipe) thread
• Thread Size: 9/16-24 x 1/8-27
• Pressure Rating: 200 psi
• Temperature Range: -65 to 250 F
• For Use With: Copper, aluminum and thermoplastic tubing
• Body Size: 0.39 in
• Center to End: 0.72 x 0.66 in
• Package Quantity: 10
• Product Type: Hose/Pipe fitting
• Category: Brass fittings
• Weight (per piece): 0.060 lb (approx.)
• Estimated Weight (pack of 10): 0.60 lb (estimated)
