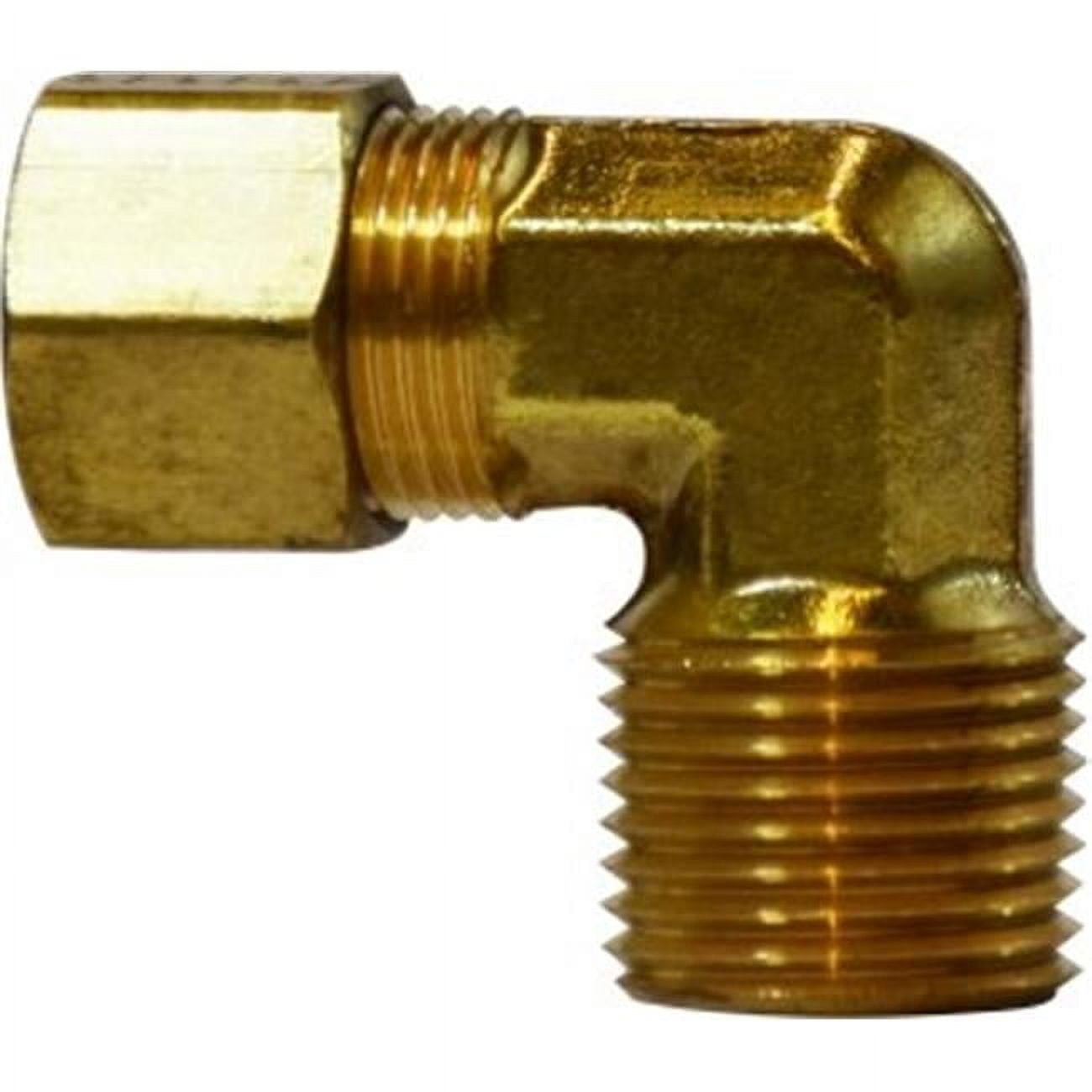

Midland Metal 18226 male compression elbow 90 deg (1/4 x 3/8 Comp x MIP)

Product Description

The Midland Metal 18226 is a forged brass 90 deg male compression elbow that provides a tube (compression) to male NPTF (Comp x MIP) connection. It connects 1/4 in tube OD to a 3/8 in male NPTF thread with threads 7/16-24 x 3/8-18, a 0.47 in body, and 0.75 x 0.91 in center-to-end dimensions. Rated to 300 psi and -65 to 250 deg F for use with copper, aluminum and thermoplastic tubing.

• Forged brass 90 deg compression to male NPTF elbow; connects 1/4 in tube OD to 3/8 in male NPTF
• Threads: 7/16-24 x 3/8-18; body size 0.47 in; center-to-end 0.75 x 0.91 in; weight 0.080 lb
• Pressure rating 300 psi; temperature range -65 to 250 deg F; compatible with copper, aluminum and thermoplastic tubing

Product Highlights

Forged brass 90 deg Comp x MIP elbow, 1/4 in tube to 3/8 in male NPTF, 300 psi, -65 to 250 deg F

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18226

Technical Specifications

• Brand: Midland Metal
• MPN: 18226
• Product Type: 90 deg elbow
• Fitting Type: Compression x Male NPTF elbow
• Connection Size 1: 1/4 in
• Connection Type 1: Tube OD
• Connection Size 2: 3/8 in
• Connection Type 2: Male NPTF
• Thread Size: 7/16-24 x 3/8-18
• Material: Forged brass
• Body Size: 0.47 in
• Center to End: 0.75 x 0.91 in
• Weight: 0.080 lb
• Pressure Rating: 300 psi
• Temperature Range: -65 to 250 deg F
• For Use With: Copper, aluminum and thermoplastic tubing
• Shape: 90 degree elbow
• Section: Compression
• Category: Brass fittings
