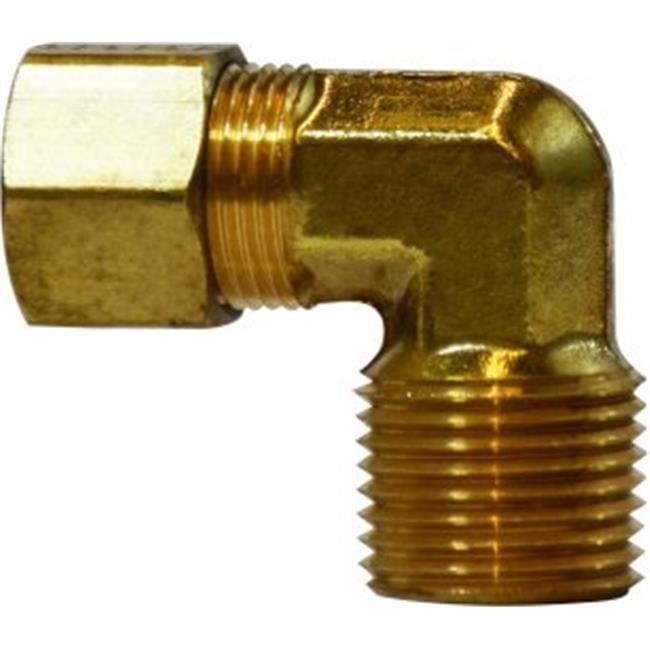

Midland Metal 18225 Male Elbow 1/4 in Tube OD x 1/4 in Male NPTF (90 Degree)

Product Description

The Midland Metal 18225 is a forged brass 90 degree compression-to-male NPTF elbow fitting designed for 1/4 in tube OD to 1/4 in male NPTF connections. It provides a compact 90 degree change of direction with thread sizes 7/16-24 x 1/4-18 and a body size of 0.36 in. The fitting is rated to 300 psi and a temperature range of -65 to 250 deg F, and is compatible with copper, aluminum, and thermoplastic tubing for plumbing and refrigeration applications.

• Forged brass construction; 90 degree compression-to-male NPTF (MIP) elbow
• Connection sizes: 1/4 in tube OD to 1/4 in male NPTF; thread size 7/16-24 x 1/4-18
• Rated 300 psi; temperature range -65 to 250 deg F; body size 0.36 in; center-to-end 0.65 x 0.94 in

Product Highlights

Compression to male NPTF 90 degree elbow; forged brass; 1/4 in connections; 300 psi; -65 to 250 deg F.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18225

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 18225
• Description: Compression x Male NPTF elbow
• Fitting Type: 90 degree elbow
• Connection 1 Type: Compression (Tube OD)
• Connection 1 Size: 1/4 in
• Connection 2 Type: Male NPTF (MIP)
• Connection 2 Size: 1/4 in
• Thread Size: 7/16-24 x 1/4-18
• Material: Forged brass
• Compatible Tubing: Copper, aluminum, thermoplastic tubing
• Pressure Rating: 300 psi
• Temperature Range: -65 to 250 deg F
• Body Size: 0.36 in
• Center-to-End Dimensions: 0.65 x 0.94 in
• Category: Brass fittings
