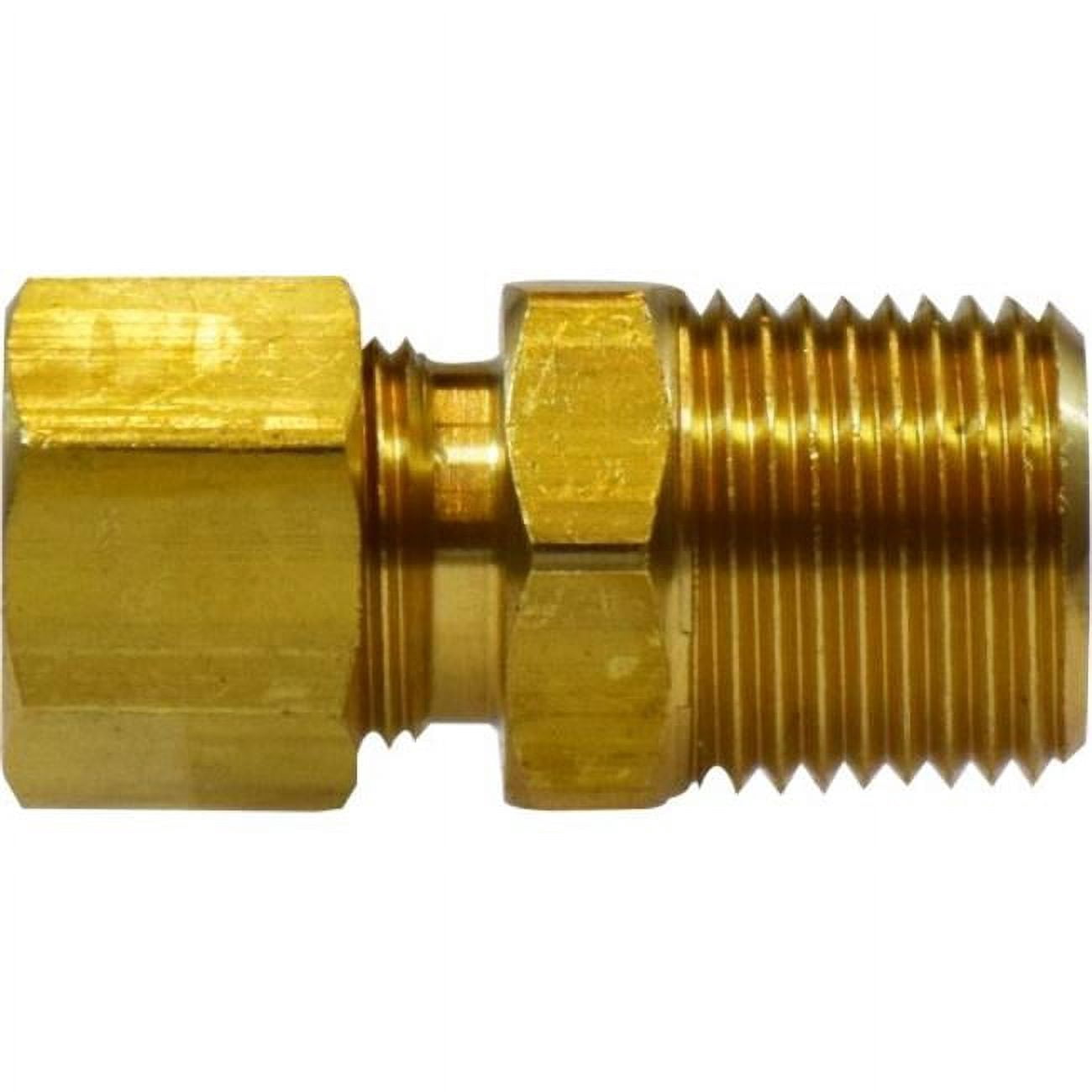

Midland Metal 18198 Brass 5/8 x 1/2 Comp x MIP Adapter (Pack of 10)

Product Description

Midland Metal 18198 is a pack of 10 brass adapters that convert a 5/8 in compression connection to a 1/2 in male iron pipe (MIP) thread. Each male adapter features 13/16-18 x 1/2-14 threads, 0.81 in hex, and a 1.12 in center-to-end length. Rated for 150 psi and -65 to 250 deg F, the fitting is suitable for copper, aluminum, and thermoplastic tubing.

• Brass construction; 5/8 in compression (tube OD) to 1/2 in male NPTF (MIP) connection
• Thread size 13/16-18 x 1/2-14; hex 0.81 in; center-to-end 1.12 in
• 150 psi pressure rating; temperature range -65 to 250 deg F; compatible with copper, aluminum and thermoplastic tubing

Product Highlights

Pack of 10 brass compression-to-MIP adapters; 5/8 in x 1/2 in; 13/16-18 x 1/2-14 thread; 150 psi; -65 to 250 deg F.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18198

Technical Specifications

• Brand: Midland Metal
• MPN: 18198
• Material: Brass
• Product Type: Male adapter
• Fitting Type: Compression to MIP adapter
• Connection 1 Size: 5/8 in
• Connection 1 Type: Compression (tube OD)
• Connection 2 Size: 1/2 in
• Connection 2 Type: Male NPTF (MIP)
• Thread Size: 13/16-18 x 1/2-14
• Hex Size: 0.81 in
• Center to End: 1.12 in
• Pressure Rating: 150 psi
• Temperature Range: -65 to 250 deg F
• For Use With: Copper, aluminum and thermoplastic tubing
• Package Quantity: 10
• Weight: 0.19 lb
• Size: 5/8 x 1/2 Comp x MIP Adapter
