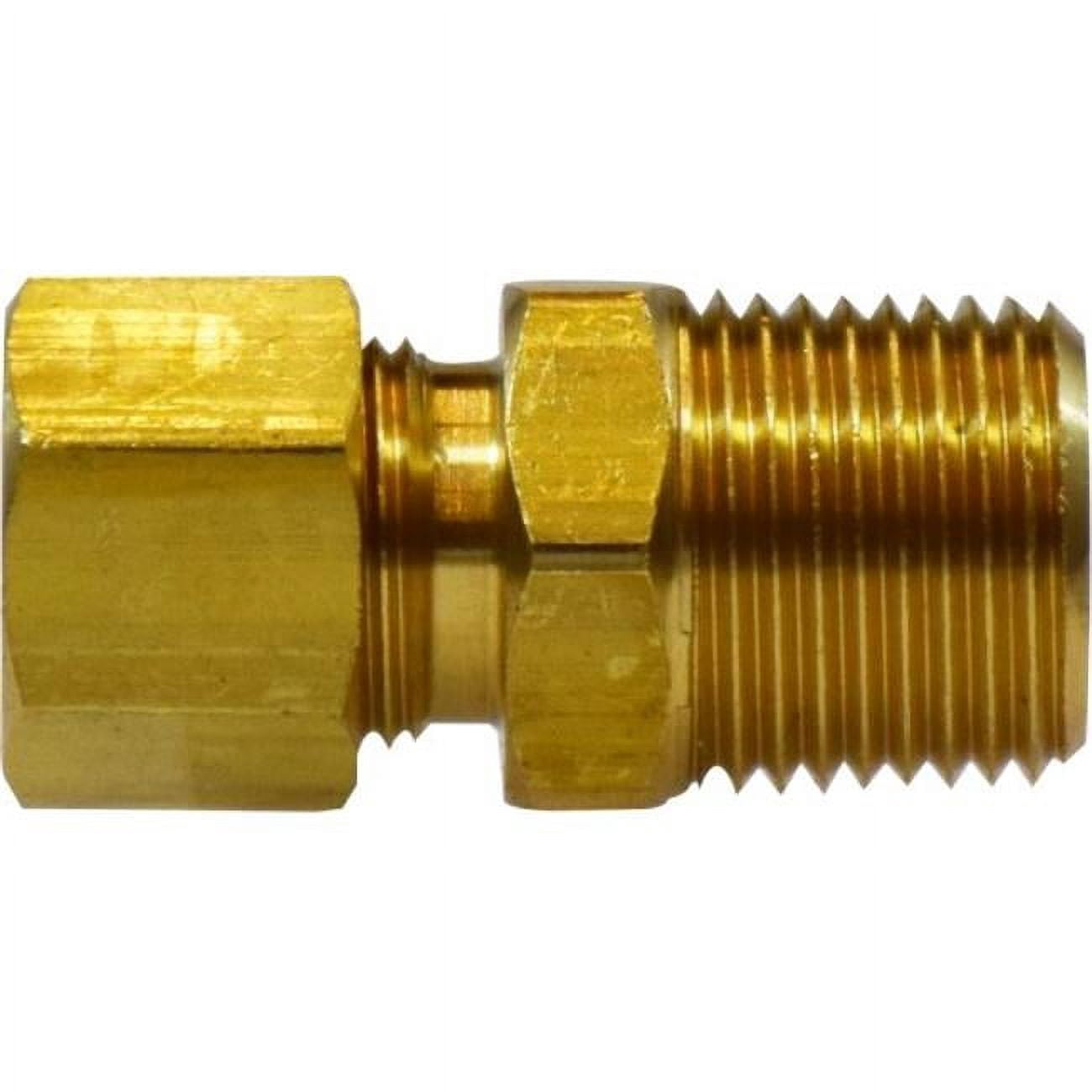

Midland Metal 18195 Male Adapter Compression x Male NPTF (1/2 x 1/2)

Product Description

Midland Metal 18195 is a brass compression-to-male NPTF adapter designed to join 1/2 in tubing to 1/2 in male pipe threads. The straight compression connector is suitable for copper, aluminum, and thermoplastic tubing and features a hex for tightening. It is rated to 200 psi and a temperature range of -65 to 250 deg F, with a compact center-to-end length of 1.41 in.

• 1/2 in x 1/2 in compression x male NPTF connection for tubing-to-pipe thread transitions
• Brass construction compatible with copper, aluminum and thermoplastic tubing; hex size 0.87 in
• Rated 200 psi; temperature range -65 to 250 deg F; center-to-end 1.41 in; weight 0.190 lb

Product Highlights

Brass compression x male NPTF 1/2 x 1/2 adapter; 200 psi; -65 to 250 deg F; for copper, aluminum and thermoplastic tubing.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18195
• Country of Origin: United States

Technical Specifications

• Brand: Midland Metal
• MPN: 18195
• Category: Brass Fittings
• Fitting Type: Adapter
• Connection Size 1: 1/2 in
• Connection Size 2: 1/2 in
• Connection Type 1: Tube OD (compression)
• Connection Type 2: Male NPTF
• For Use With: Copper; Aluminum; Thermoplastic Tubing
• Material: Brass
• Hex Size: 0.87 in
• Pressure Rating: 200 psi
• Temperature Rating: -65 to 250 deg F
• Center to End: 1.41 in
• Weight: 0.190 lb
• Shape: Straight/Connector
• Section: Compression
