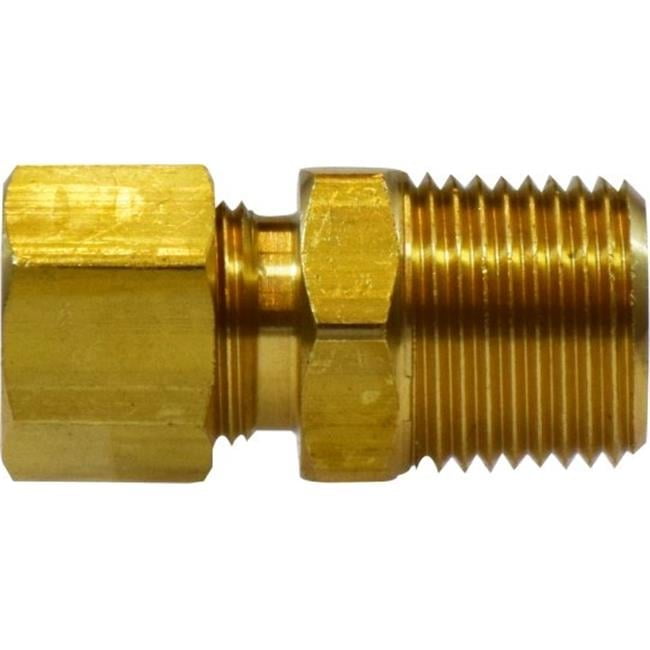

Midland Metal 18189 Compression to Male NPTF Adapter (3/8 in x 3/8 in)

Product Description

Midland Metal 18189 is a brass compression to male NPTF adapter that connects 3/8 in tube outer diameter to 3/8 in male NPTF threads. It features a 9/16-24 x 3/8-18 thread, 0.69 in hex, and a 1.14 in center-to-end length. The fitting is rated to 200 psi and -65 to 250 deg F and is compatible with copper, aluminum, and thermoplastic tubing for plumbing and irrigation connections.

• Brass construction; compression connection to 3/8 in tube OD and 3/8 in male NPTF
• Thread size 9/16-24 x 3/8-18 with 0.69 in hex and 1.14 in center-to-end length
• Rated 200 psi working pressure; temperature range -65 to 250 deg F; compatible with copper, aluminum, thermoplastic tubing

Product Highlights

3/8 in compression x 3/8 in male NPTF brass adapter; 9/16-24 x 3/8-18 thread; 200 psi; -65 to 250 deg F; 1.14 in center-to-end.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18189

Technical Specifications

• Brand: Midland Metal
• MPN: 18189
• Type: Male adapter (compression to male NPTF)
• Material: Brass
• Connection 1: 3/8 in tube OD (compression)
• Connection 2: 3/8 in male NPTF (MIP)
• Thread Size: 9/16-24 x 3/8-18
• Hex Size: 0.69 in
• Center to End Length: 1.14 in
• Pressure Rating: 200 psi
• Temperature Range: -65 to 250 deg F
• For Use With: Copper, aluminum, thermoplastic tubing
• Weight: 0.07 lb
• Fitting Type: Adapter
• Category: Brass fittings
• Shape: Straight/Connector
