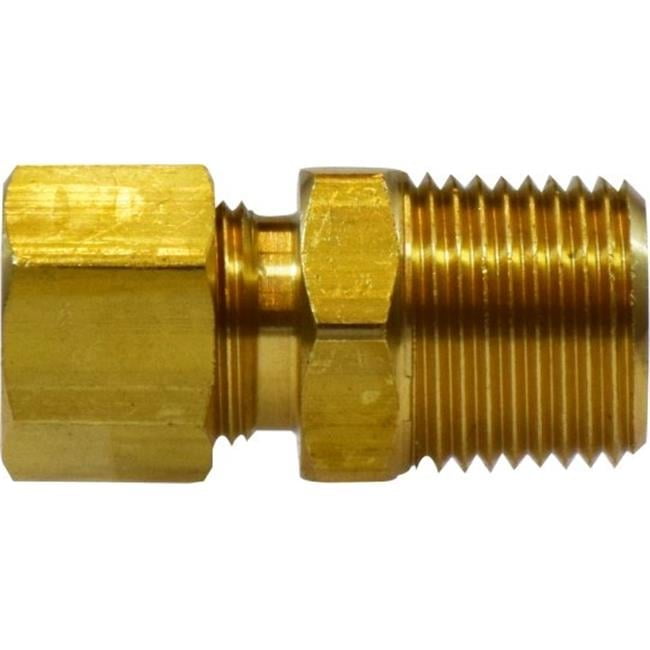

Midland Metal 18187 Compression to male NPTF adapter (3/8 x 1/8)

Product Description

The Midland Metal 18187 is a brass compression-to-male NPTF adapter that connects a 3/8 in tube outside diameter to a 1/8 in male NPTF thread. It includes a 9/16-24 x 1/8-27 thread, a 0.56 in hex for wrenching, and a 0.97 in center-to-end length. Rated for 200 psi and -65 to 250 °F, it is suitable for copper, aluminum, and thermoplastic tubing used in plumbing and irrigation.

• 3/8 in tube OD compression to 1/8 in male NPTF connection with 9/16-24 x 1/8-27 thread
• Brass construction with 0.56 in hex and 0.97 in center-to-end for wrenching and compact installation
• 200 psi pressure rating and -65 to 250 °F temperature range; compatible with copper, aluminum, and thermoplastic tubing

Product Highlights

Straight brass compression to 1/8 in male NPTF adapter, 200 psi rating

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18187

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 18187
• Material: Brass
• Fitting Type: Male adapter
• Connection Size 1: 3/8 in
• Connection Type 1: Tube OD (compression)
• Connection Size 2: 1/8 in
• Connection Type 2: Male NPTF
• Thread Size: 9/16-24 x 1/8-27
• Hex Size: 0.56 in
• Center to End: 0.97 in
• Pressure Rating: 200 psi
• Temperature Range: -65 to 250 °F
• For Use With: Copper, aluminum and thermoplastic tubing
• Category: Brass fittings
• Shape: Straight/connector
