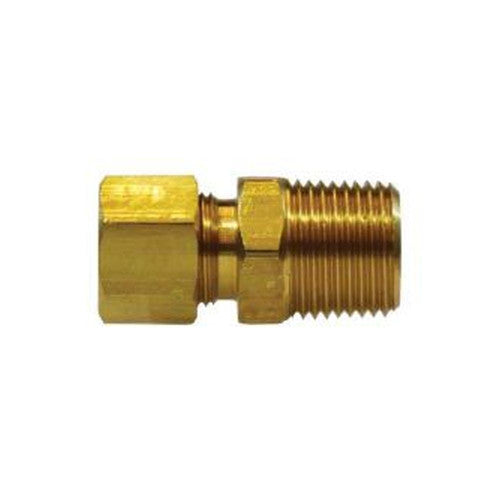

Midland Metal 18184L 5/16 x 1/4 (comp x mip adapter lp) brass compression male adapter 00068-0504

Product Description

The MIDLAND METAL 18184L is a brass compression male adapter designed for low and medium pressure tubing connections. This light pattern fitting connects 5/16 inch tube OD to 1/4 inch male NPTF, suitable for copper, aluminum, and thermoplastic tubing. It operates within a temperature range of -65 to 250 degrees F and handles pressures up to 300 psi. The adapter is not recommended for steel tubing or gaseous media applications.

• Compression fitting male adapter made of brass.
• Suitable for copper, aluminum, and thermoplastic tubing.
• Rated for 300 psi pressure and -65 to 250 degrees F temperature.

Product Highlights

Brass compression male adapter for low to medium pressure tubing, connecting 5/16 inch tube OD to 1/4 inch male NPTF.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18184L

Technical Specifications

• Category: Brass Fittings
• Connection Size 1: 5/16 in
• Connection Size 2: 1/4 in
• Connection Type 1: Tube OD
• Connection Type 2: Male NPTF
• Fitting Type: Adapter
• For Use With: Copper; Aluminum and Thermoplastic Tubing
• Hex Size: 0.56 in
• Material: Brass
• Pressure Rating: 300 psi
• Section: Compression
• Shape: Straight/Connector
• Temperature Rating: -65 to 250 deg F
• Thread Size: 1/2-24 x 1/4-18
• Standards: ASA Standards, ASME Standards, SAE Standards
• SAE Rating: 060102
• Tolerance: +/- 0.02 on all dimensions
• Crossover Series: 68
