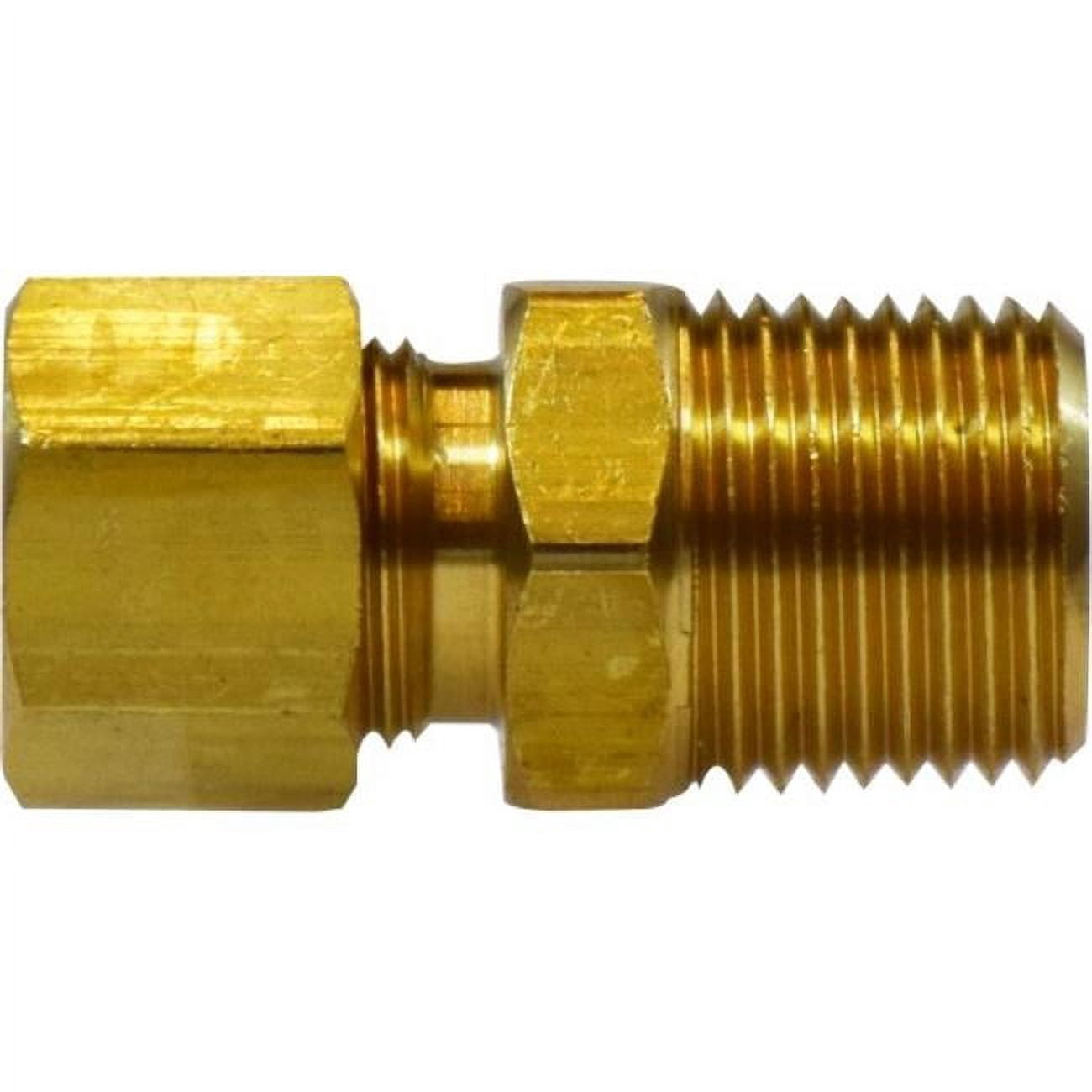

Midland Metal 18184 Compression to Male NPTF Adapter (5/16 x 1/4)

Product Description

Midland Metal 18184 is a brass compression-to-male NPTF adapter that connects 5/16 in tube outside diameter to 1/4 in male NPTF threads. The 5/16 in compression side mates with copper, aluminum, or thermoplastic tubing while the 1/4 in male NPTF uses 1/2-24 x 1/4-18 threads; hex size 0.56 in. The fitting is rated to 300 psi, suitable for -65 to 250 deg F, and has a 1.09 in center-to-end length.

• Brass construction with 5/16 in compression connection to 1/4 in male NPTF
• Thread specification 1/2-24 x 1/4-18 and 0.56 in hex for wrenching
• Rated to 300 psi, temperature range -65 to 250 °F, center-to-end 1.09 in

Product Highlights

Brass compression-to-male NPTF adapter for 5/16 in tubing to 1/4 in male thread, 300 psi rating, -65 to 250 °F

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18184

Technical Specifications

• Manufacturer Part Number: 18184
• Brand: Midland Metal
• Material: Brass
• Type: Compression to Male NPTF adapter
• Connection 1 Size: 5/16 in (tube OD)
• Connection 1 Type: Compression (tube outside diameter)
• Connection 2 Size: 1/4 in (male NPTF)
• Connection 2 Type: Male NPTF
• Thread: 1/2-24 x 1/4-18
• Hex Size: 0.56 in (across flats)
• Compatible Tubing: Copper, aluminum, thermoplastic
• Pressure Rating: 300 psi
• Temperature Range: -65 to 250 °F
• Center-to-End: 1.09 in
