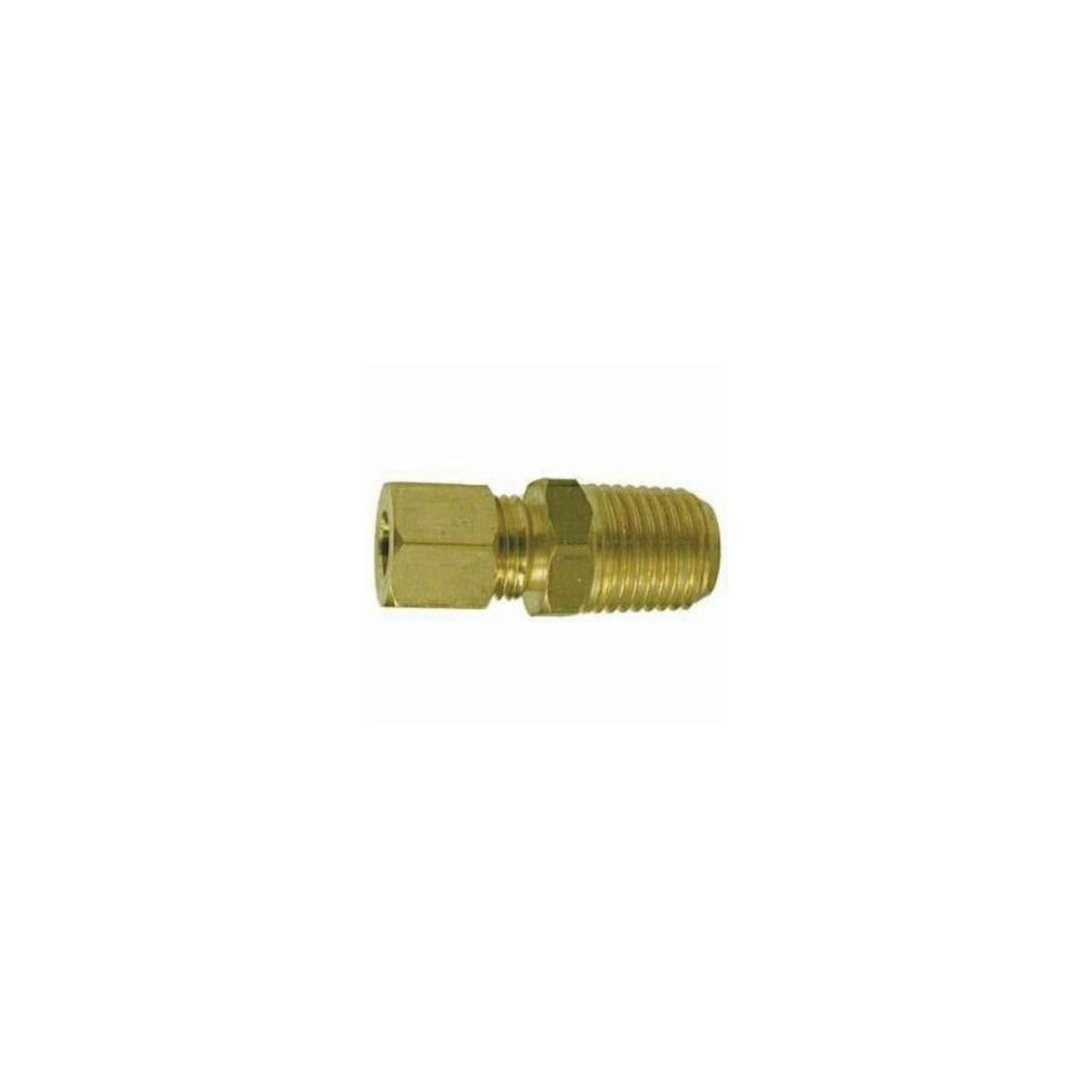

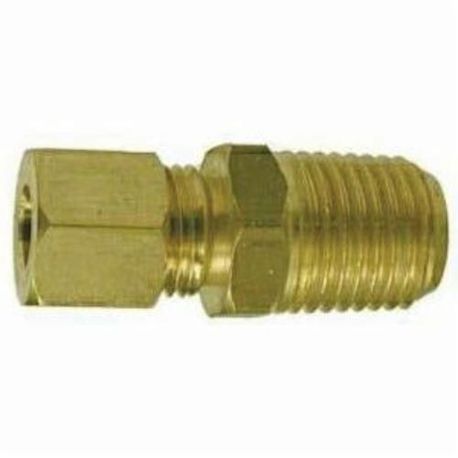

Midland Metal 18180 Brass 1/4 x 1/4 Comp x MIP Adapter (Pack of 10)

Product Description

Midland Metal 18180 is a brass compression-to-male-pipe adapter that provides a 1/4 inch compression connection to a 1/4 inch male pipe (MIP) thread. The straight connector is suitable for tube-to-pipe transitions in plumbing, hydraulic, and pneumatic lines and is compatible with copper, aluminum, and thermoplastic tubing. Key mechanical details include a 0.56 in hex, 1.06 in center-to-end, 300 psi rating, and -65 to 250 deg F temperature range.

• Brass construction with 1/4 in compression (tube OD) to 1/4 in male pipe (MIP) connection; thread size 7/16-24 x 1/4-18
• Rated for 300 psi working pressure and a temperature range of -65 to 250 deg F; hex size 0.56 in and center-to-end 1.06 in
• Compatible with copper, aluminum, and thermoplastic tubing; supplied as a pack of 10; unit weight approximately 0.055 lb

Product Highlights

Brass tube-to-pipe adapter, 1/4 in compression x 1/4 in MIP, 300 psi, -65 to 250 deg F, pack of 10

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18180
• Country of Origin: Import

Technical Specifications

• Brand: Midland Metal
• MPN: 18180
• Material: Brass
• Shape: Straight / Connector
• Product Type: Hose/Pipe Fitting
• Connection A: 1/4 in compression (tube OD)
• Connection B: 1/4 in male pipe (MIP) / male NPTF
• Thread Size: 7/16-24 x 1/4-18
• Hex Size: 0.56 in
• Center to End: 1.06 in
• For Use With: Copper, aluminum, and thermoplastic tubing
• Pressure Rating: 300 psi
• Temperature Rating: -65 to 250 deg F
• Pack Quantity: 10
• Nominal Size: 1/4 in
• Weight: 0.055 lb (per unit)
