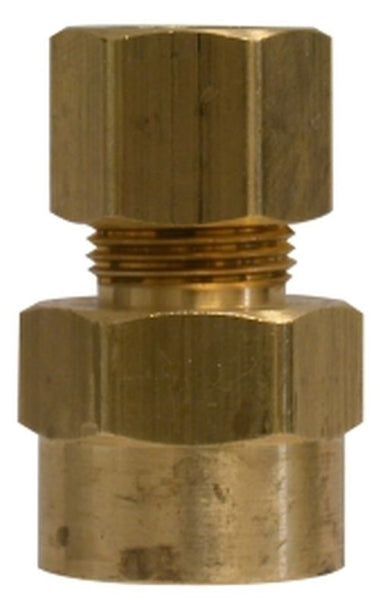

Midland Metal 18159 Brass 1/2 x 1/2 Comp x FIP Adapter (Pack of 10)

Product Description

Midland Metal 18159 is a brass adapter that converts a 1/2-inch compression connection to a 1/2-inch female iron pipe (FIP/FNPTF) thread, supplied as a pack of 10 for plumbing and tube-to-pipe applications. It includes a 1-inch hex for tightening and a 11/16-20 x 1/2-14 thread, with a 1.31 inch center-to-end length. The fitting is rated to 200 psi and -65 to 250 °F and is compatible with copper, aluminum, and thermoplastic tubing.

• Connection: 1/2 in compression to 1/2 in female NPTF (FIP); thread 11/16-20 x 1/2-14
• Ratings and dimensions: 200 psi working pressure; temperature range -65 to 250 °F; center-to-end 1.31 in; 1 in hex
• Pack and use: supplied as a pack of 10; suitable for copper, aluminum and thermoplastic tubing; not recommended for steel tubing

Product Highlights

1/2 in compression to 1/2 in FIP/FNPTF brass adapter; 200 psi; -65 to 250 °F; 1 in hex; pack of 10

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18159
• Country of Origin: Unknown

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number (MPN): 18159
• Material: Brass
• Connection 1: 1/2 in compression
• Connection 2: 1/2 in female NPTF (FIP)
• Connection Type: Compression x Female NPTF (FNPTF/FIP)
• Nominal Size: 1/2 in
• Thread Size: 11/16-20 x 1/2-14
• Hex Size: 1 in
• Center to End: 1.31 in
• Pressure Rating: 200 psi
• Temperature Range: -65 to 250 °F
• Pack Quantity: 10
• For Use With: Copper, aluminum and thermoplastic tubing
• Recommended Use: Low and medium pressure tubing connection work; not recommended for steel tubing
• Tolerance: +/-0.02 on all dimensions
• Shape: Straight/Connector
• Weight: 0.120 lb
