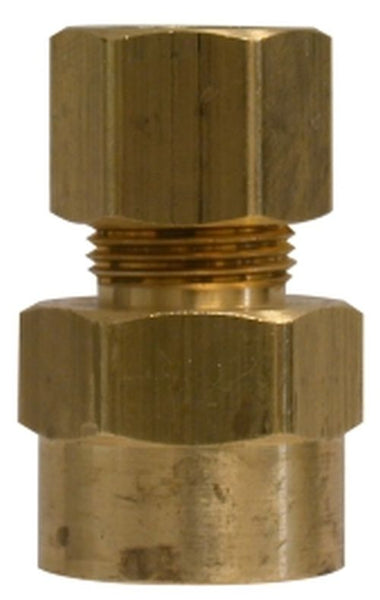

Midland Metal 18155 3/8 x 1/2 Compression x FIP Adapter 1.12 in

Product Description

The Midland Metal 18155 is a brass 3/8 x 1/2 compression to female NPT (FIP/FNPT) adapter that connects compression tubing to a female pipe thread. The straight connector has a 1.12 in center-to-end length, a 1 in hex for tightening, and a 9/16-24 x 1/2-14 thread size. It is rated to 200 psi and usable from -65 to 250 deg F with copper, aluminum, or thermoplastic tubing.

• Brass construction; compatible with copper, aluminum, and thermoplastic tubing
• 3/8 in compression connection to 1/2 in female NPT (FIP/FNPT); thread size 9/16-24 x 1/2-14
• Rated 200 psi; temperature range -65 to 250 deg F; 1.12 in center-to-end and 1 in hex

Product Highlights

3/8 x 1/2 compression to female NPT brass adapter, 1.12 in center-to-end, 200 psi, -65 to 250 deg F

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18155

Technical Specifications

• Brand: Midland Metal Mfg.
• Manufacturer Part Number: 18155
• SKU: 18155
• Fitting Type: Adapter
• Connection 1: 3/8 in compression
• Connection 2: 1/2 in female NPT (FIP/FNPT)
• Connection Type: Compression; Female NPT (FIP/FNPT)
• Thread Size: 9/16-24 x 1/2-14
• Material: Brass
• Category: Brass Fittings
• For Use With: Copper; Aluminum; Thermoplastic Tubing
• Pressure Rating: 200 psi
• Temperature Rating: -65 to 250 deg F
• Center to End: 1.12 in
• Hex Size: 1 in
• Weight: 0.080 lb
• Shape: Straight/Connector
• Section: Compression
