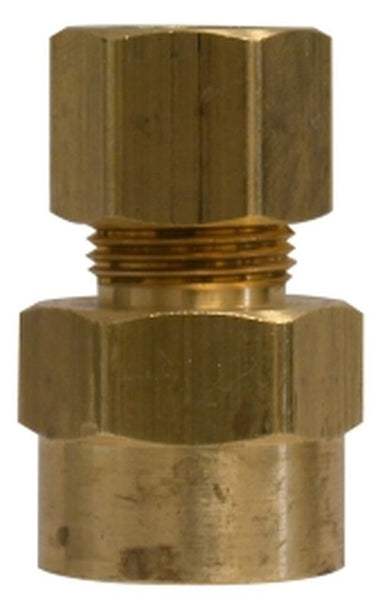

Midland Metal 18153 Female Adapter 3/8 x 1/4 Compression x FNPT

Product Description

Midland Metal 18153 is a brass compression-to-female NPT adapter that connects 3/8 in compression tubing to a 1/4 in female NPT port. The straight brass fitting is compatible with copper, aluminum, and thermoplastic tubing, and is rated to 200 psi with an operating temperature range of -65 to 250 deg F. Hex size is 0.68 in, center-to-end is 1.06 in, thread size 9/16-24 x 1/4-18 and weight is 0.080 lb.

• Brass construction; straight compression-to-female NPT adapter
• Connects 3/8 in compression tubing to 1/4 in female NPT; thread size 9/16-24 x 1/4-18
• Pressure rating 200 psi; temperature range -65 to 250 deg F; compatible with copper, aluminum and thermoplastic tubing

Product Highlights

3/8 in compression to 1/4 in female NPT brass adapter; 200 psi pressure rating; -65 to 250 deg F temperature range; hex size 0.68 in; center-to-end 1.06 in.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18153

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 18153
• Category: Brass fittings
• Fitting Type: Adapter
• Material: Brass
• Connection 1 Size: 3/8 in
• Connection 1 Type: Compression
• Connection 2 Size: 1/4 in
• Connection 2 Type: Female NPT (FNPT)
• Thread Size: 9/16-24 x 1/4-18
• Pressure Rating: 200 psi
• Temperature Rating: -65 to 250 deg F
• For Use With: Copper, aluminum and thermoplastic tubing
• Hex Size: 0.68 in
• Center to End: 1.06 in
• Weight: 0.080 lb
• Shape: Straight/Connector
