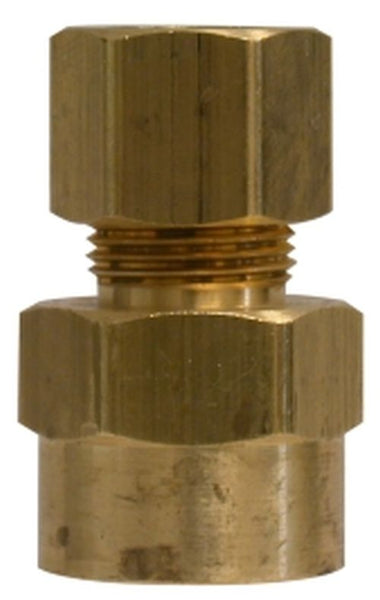

Midland Metal 18152 Adapter 3/8 in compression x 1/8 in FNPTF (3/8 x 1/8 Comp x FIP Adapter)

Product Description

Midland Metal 18152 is a brass female adapter that converts a 3/8 inch compression connection to a 1/8 inch FNPTF (FIP) thread. The straight connector features 9/16-24 x 1/8-27 threads, a 0.56 inch hex for wrench tightening, and a compact 0.88 inch center-to-end length. It is rated to 200 psi and -65 to 250 deg F and is suitable for plumbing and HVAC use with copper, aluminum, or thermoplastic tubing.

• Connection: 3/8 in compression to 1/8 in FNPTF (FIP) with 9/16-24 x 1/8-27 threads
• Material and ratings: brass construction, 200 psi pressure rating, temperature range -65 to 250 deg F
• Dimensions and fit: 0.56 in hex for tightening, 0.88 in center-to-end, fits copper, aluminum, and thermoplastic tubing

Product Highlights

Brass compression-to-FNPTF female adapter, 200 psi, -65 to 250 deg F, 0.56 in hex, 0.88 in center-to-end

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18152

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 18152
• Type: Female Adapter
• Fitting Type: Adapter
• Material: Brass
• Connection Type 1: Compression
• Connection Size 1: 3/8 in
• Connection Type 2: FNPTF (FIP)
• Connection Size 2: 1/8 in
• Threads: 9/16-24 x 1/8-27
• Hex Size: 0.56 in
• For Use With: Copper, aluminum, and thermoplastic tubing
• Pressure Rating: 200 psi
• Temperature Range: -65 to 250 deg F
• Center to End: 0.88 in
• Shape: Straight/Connector
• Weight: 0.060 lb
